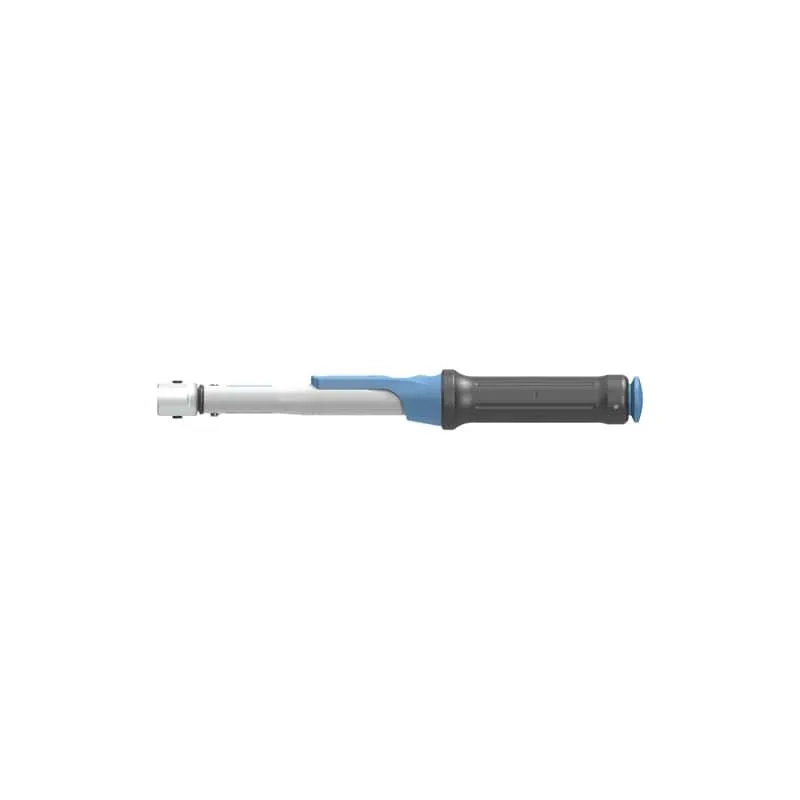

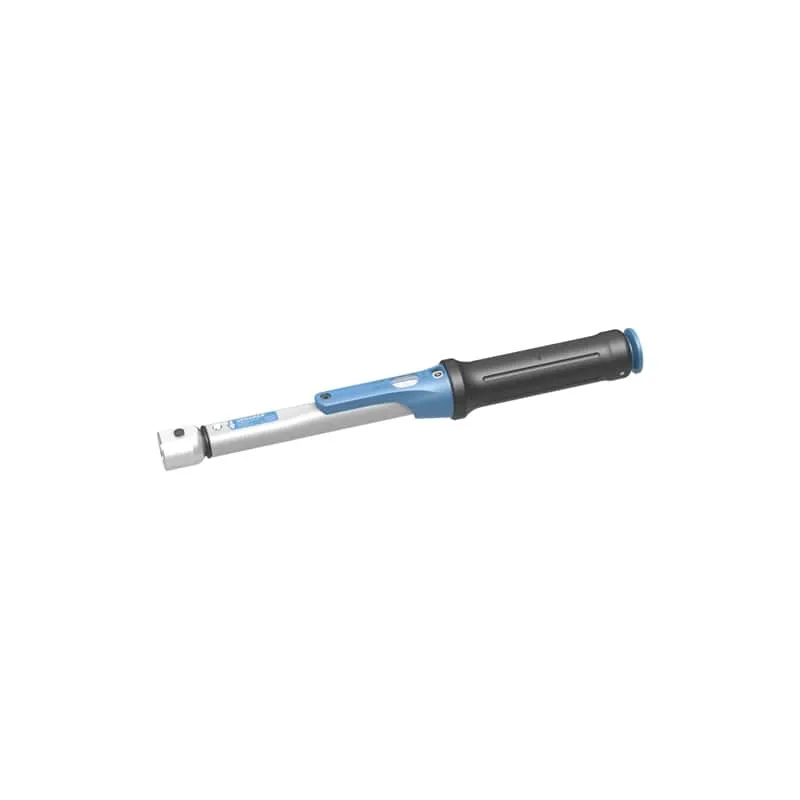

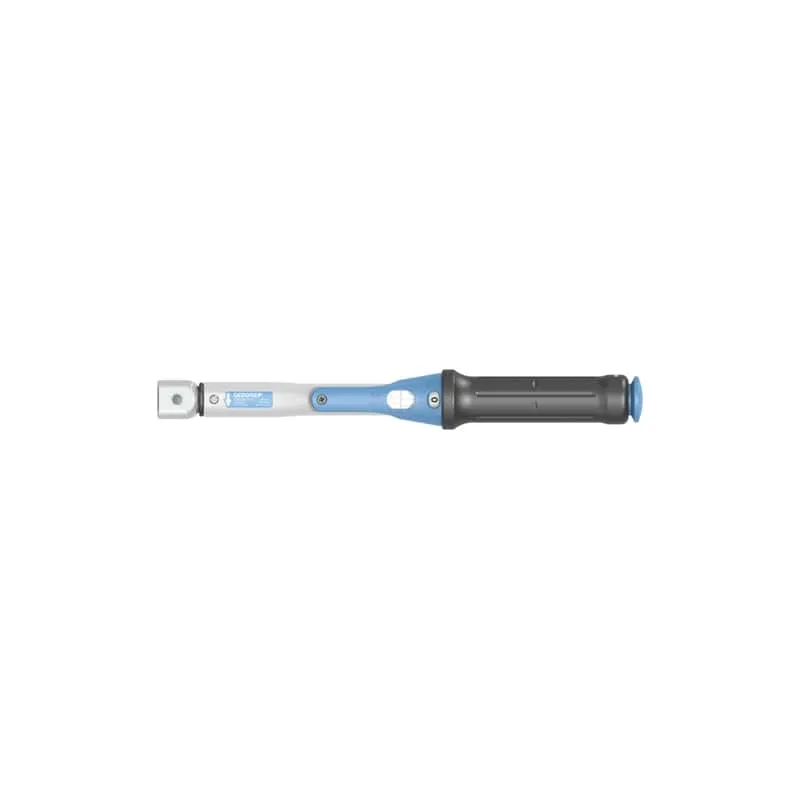

Product Details
＋
General Information
Brand
GEDORE TOOLS
Product Type
Torque Wrenches
Packaging
Retail
Country of Origin
Germany
UPC
4002805927120
California Residents
Part Number
1646192
Physical Characteristics
Color
Metallic & Black
Finish
Zinc-Plated & Chrome-Plated
Material
Steel
Length
273 mm
Width
20 mm
Weight
0.35 kg
0.78 lb
Details
Wrench Type
Torque Wrench
Torque Range ft lbs
3.7-18 ft lbs
Torque Range Nm
5-25 Nm
Torque Accuracy
/- 3%
Size

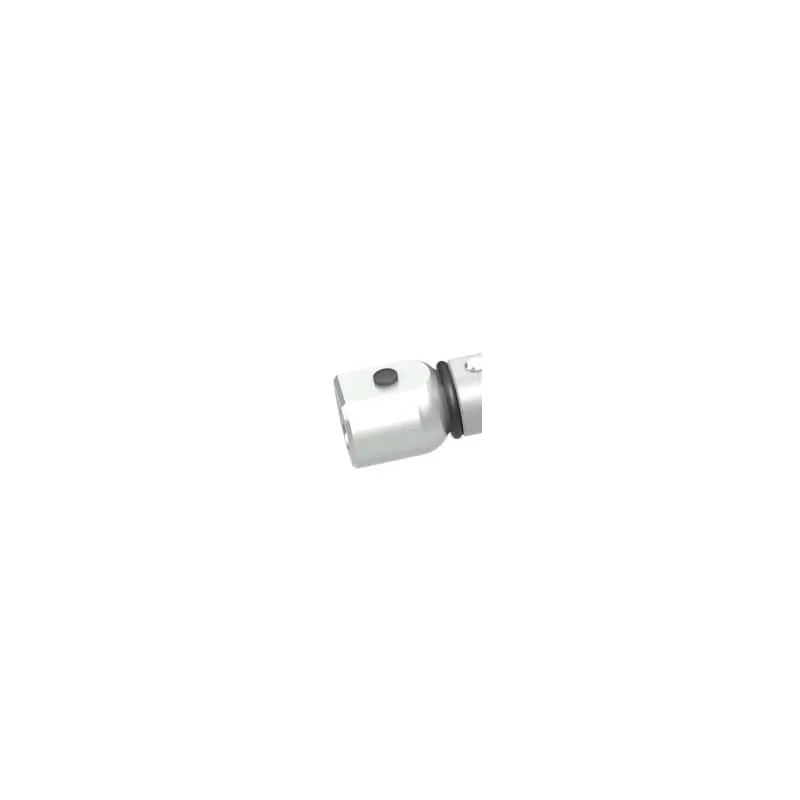

Drive Connector Rectangular: 9 x 12 mm
Depth Gauge (C.L): 17.5 mm
Scale Divisions: 1 Nm
Scale Ring Graduations: 0.1 Nm
Distance Middle of Handgrip to Pivot Point: 212.5 mm
Distance from Housing to Drive: 32 mm
Depth Gauge (C.L): 17.5 mm
Scale Divisions: 1 Nm
Scale Ring Graduations: 0.1 Nm
Distance Middle of Handgrip to Pivot Point: 212.5 mm
Distance from Housing to Drive: 32 mm
Grip Type
Ergonomic
Features
Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: /- 3 % tolerance of scale set torque. The specification of the standard ( /- 4 %) is exceeded.
For controlled bi-directional tightening
Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity and high-grade plastic parts
Ergonomically shaped, convenient black plastic handgrip with calibration aid
Dual scale Nm and lbfft below a window with a magnifying-glass effect
With micrometre scale for main Nm scale for setting interim values
Release system triggers a tactile and audible signal
Ergonomic system for torque adjustment
Operation only with end fittings with standardized depth gauges, otherwise inaccuracies can arise
Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
