Product Details
＋
General Information
Brand
Klein Tools
Part Number
CL320
Product Type
Tester
What's Included

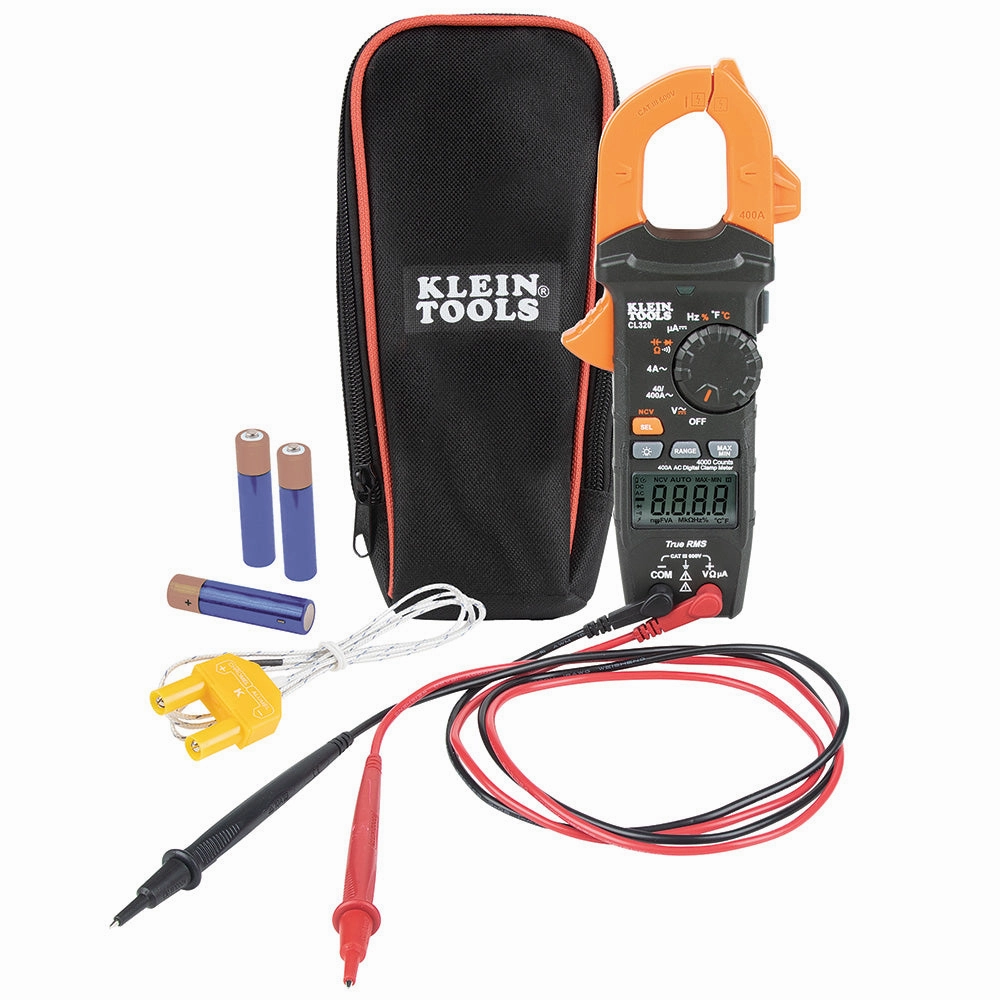

Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
Packaging
Retail
UPC
092644692864
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black and Orange
Material
ABS/Electronics
Length
8.45'' (21.5 cm)
Width
3.51'' (8.9 cm)
Height
1.51'' (3.8 cm)
Weight
0.31185 kg
0.6875121254343111 lb
Details
Functions
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC Micro Amp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
Features

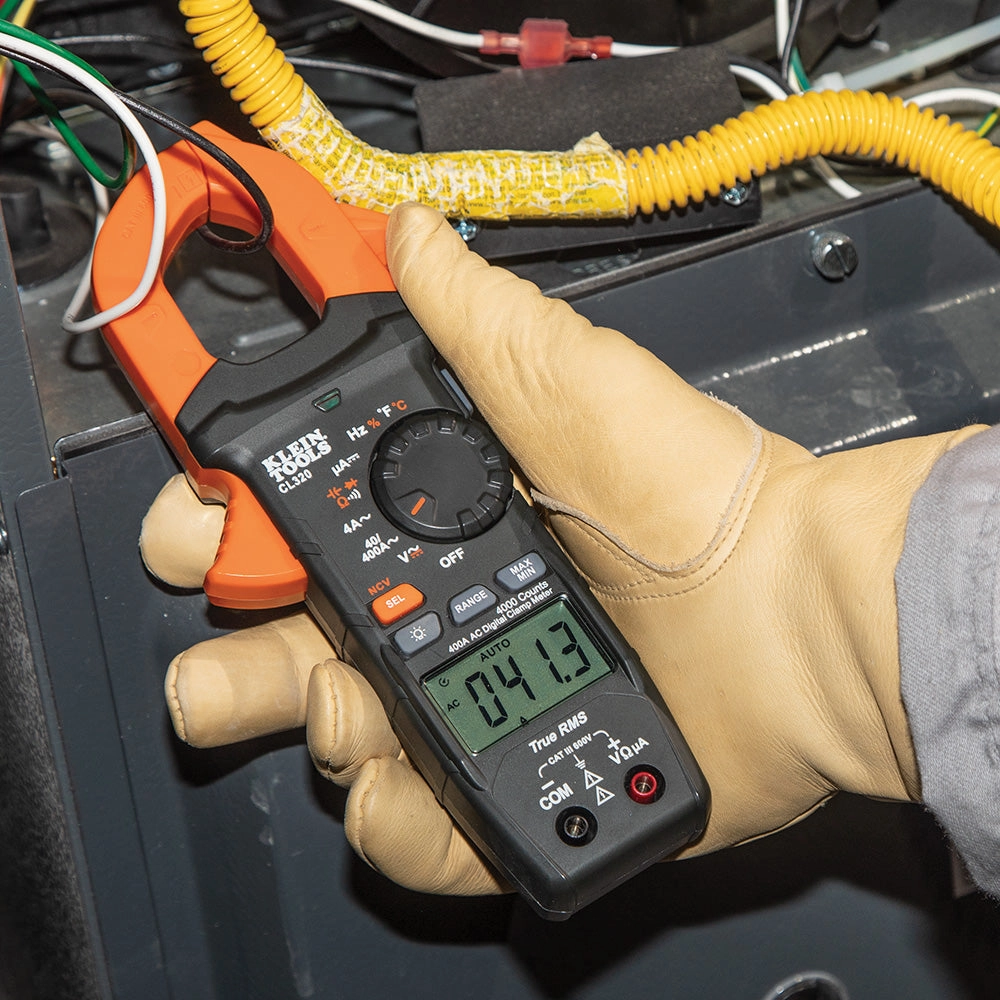

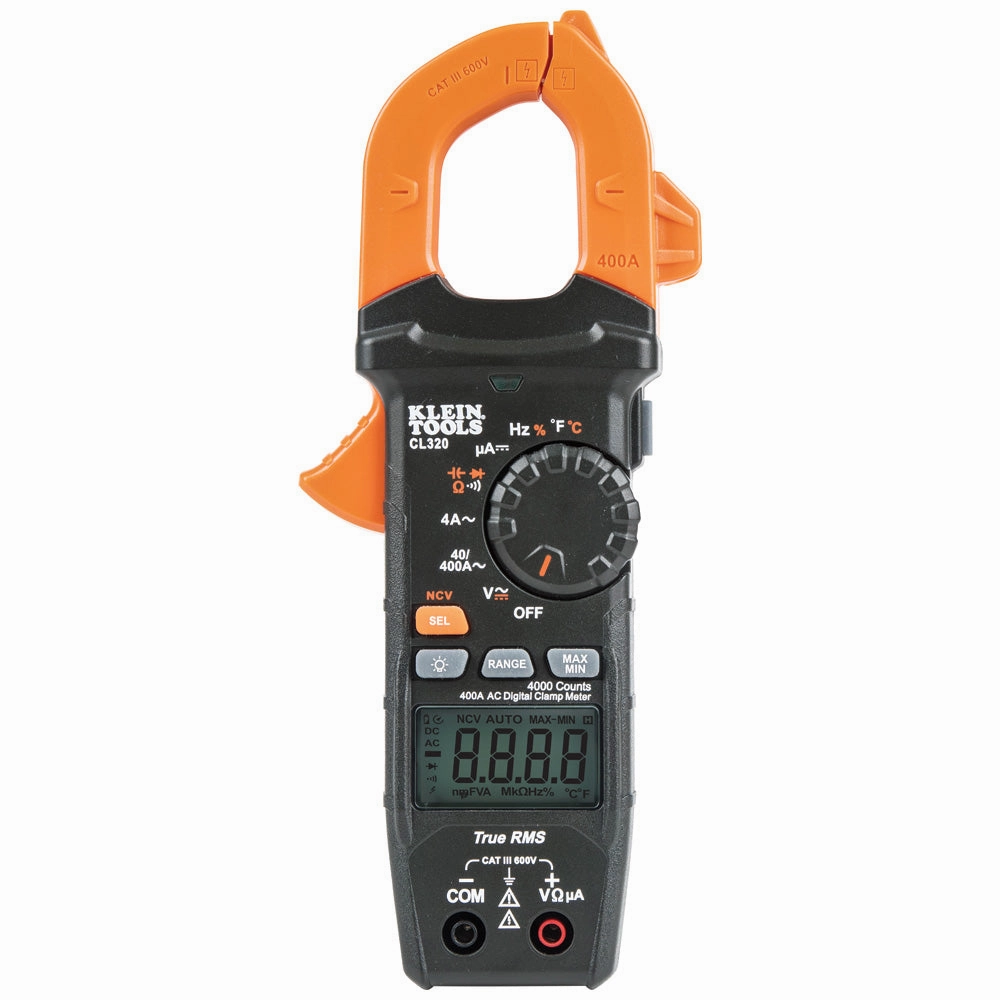

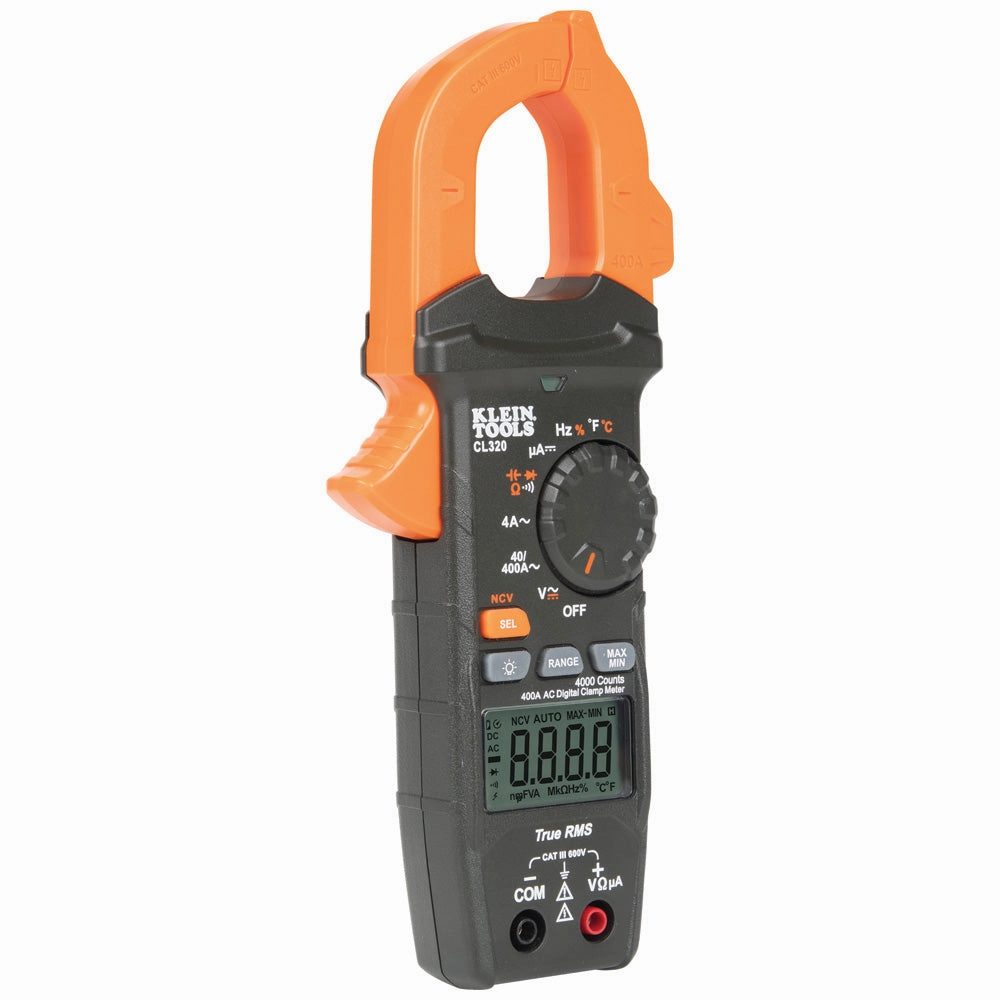

Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Data Hold, and Max/Min value
Auto-power off after 10 minutes to conserve battery life

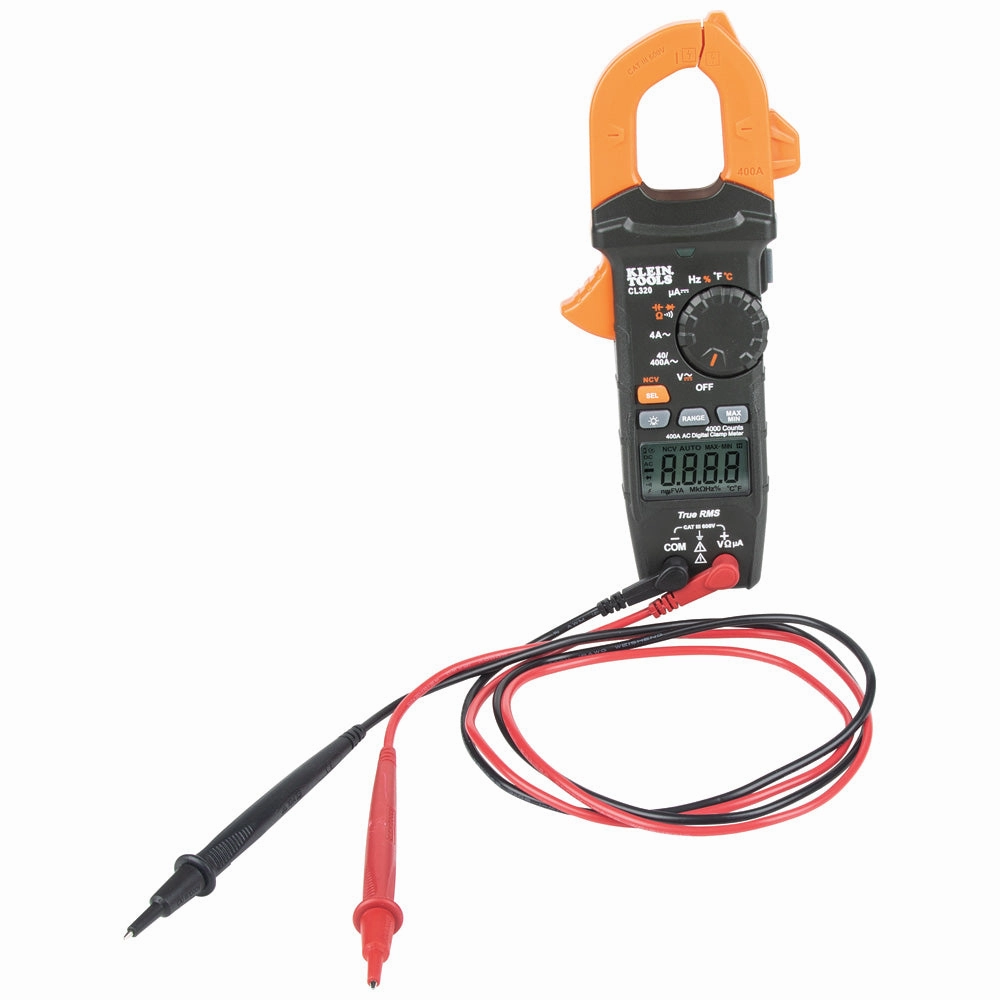

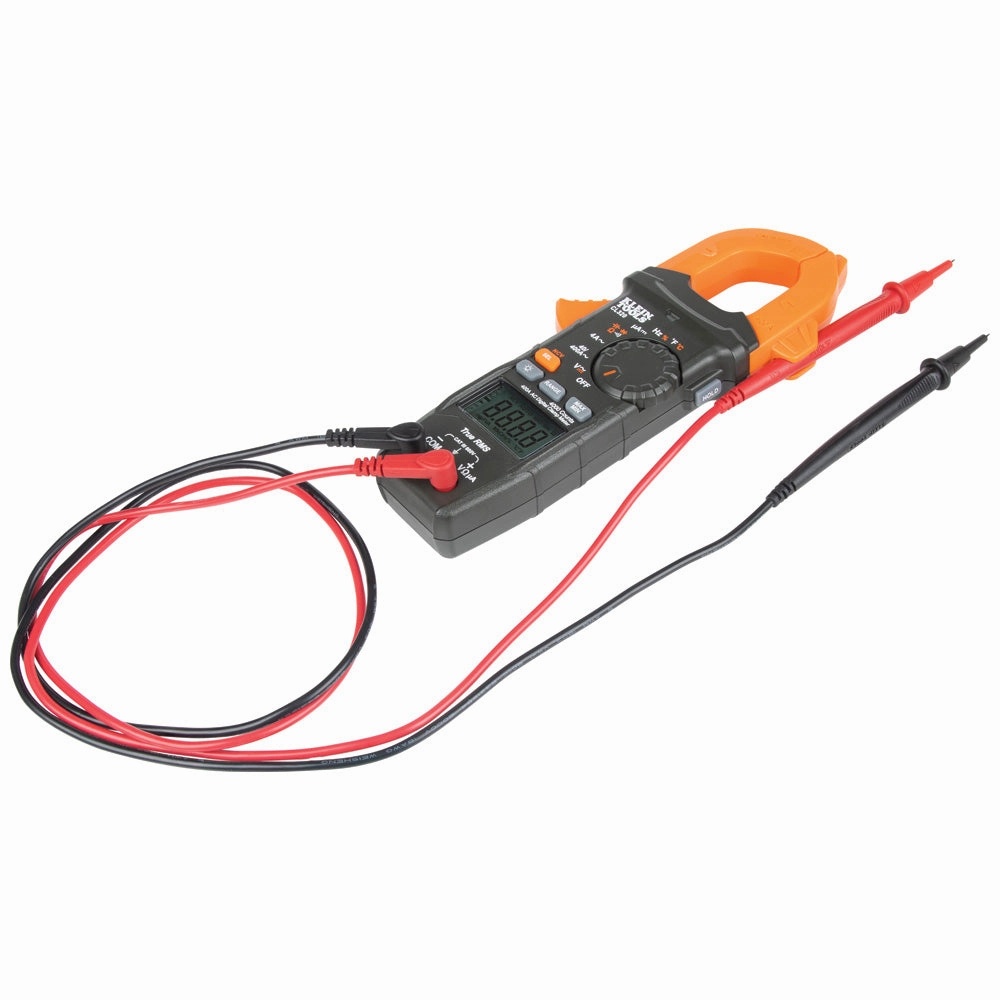

Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries

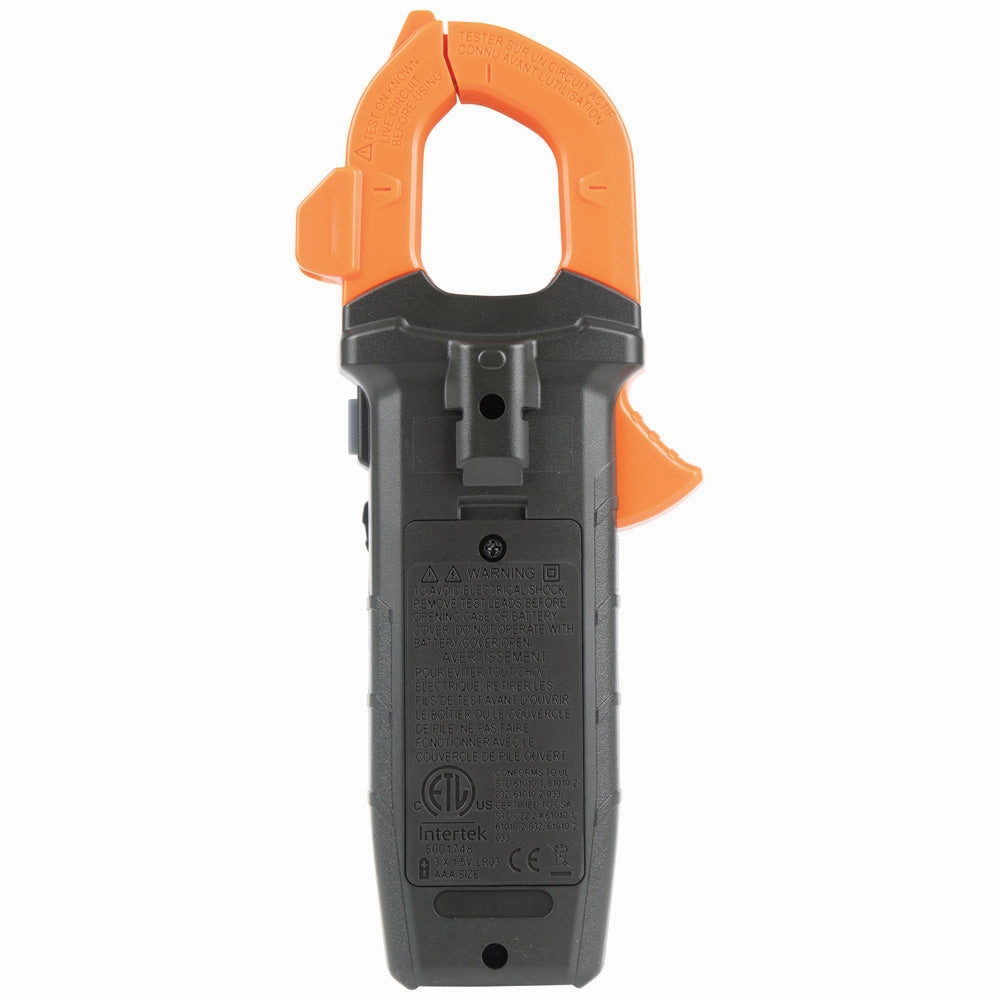

Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Data Hold, and Max/Min value
Auto-power off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
AC Voltage
600V
DC Voltage
600V
Current
400 A AC
Voltage
600V AC/DC
Capacitance
4000 F
Resistance (Ohms)
40MO
Frequency
10 Hz -1 MHz
Batteries
3 x AAA
Display Type
4000 Count Backlit LCD
Temperature Range
-40 - 1832F (-40 - 1000C)
