Product Details
＋
General Information
Brand
Klein Tools
Part Number
KTSBSPRO
Product Type
Step Drill Bit
Application
Multi-Material Drilling
Number of Pieces
3
Packaging
Retail
UPC
092644530098
California Residents
Physical Characteristics
Length
0.88'' to 1.8'' (2.2 to 4.6 cm)
Width
0.88'' to 1.8'' (2.2 to 4.6 cm)
Height
3.2'' to 3.6'' (8.1 to 9.4 cm)
Weight
0.59 kg
1.29 lb
Color
Black & Orange
Finish
Aluminum Titanium Nitride (AlTiN)
Material
High Speed Steel
Details
Tip Type
Hex Shank
Size
Flute Type: Straight

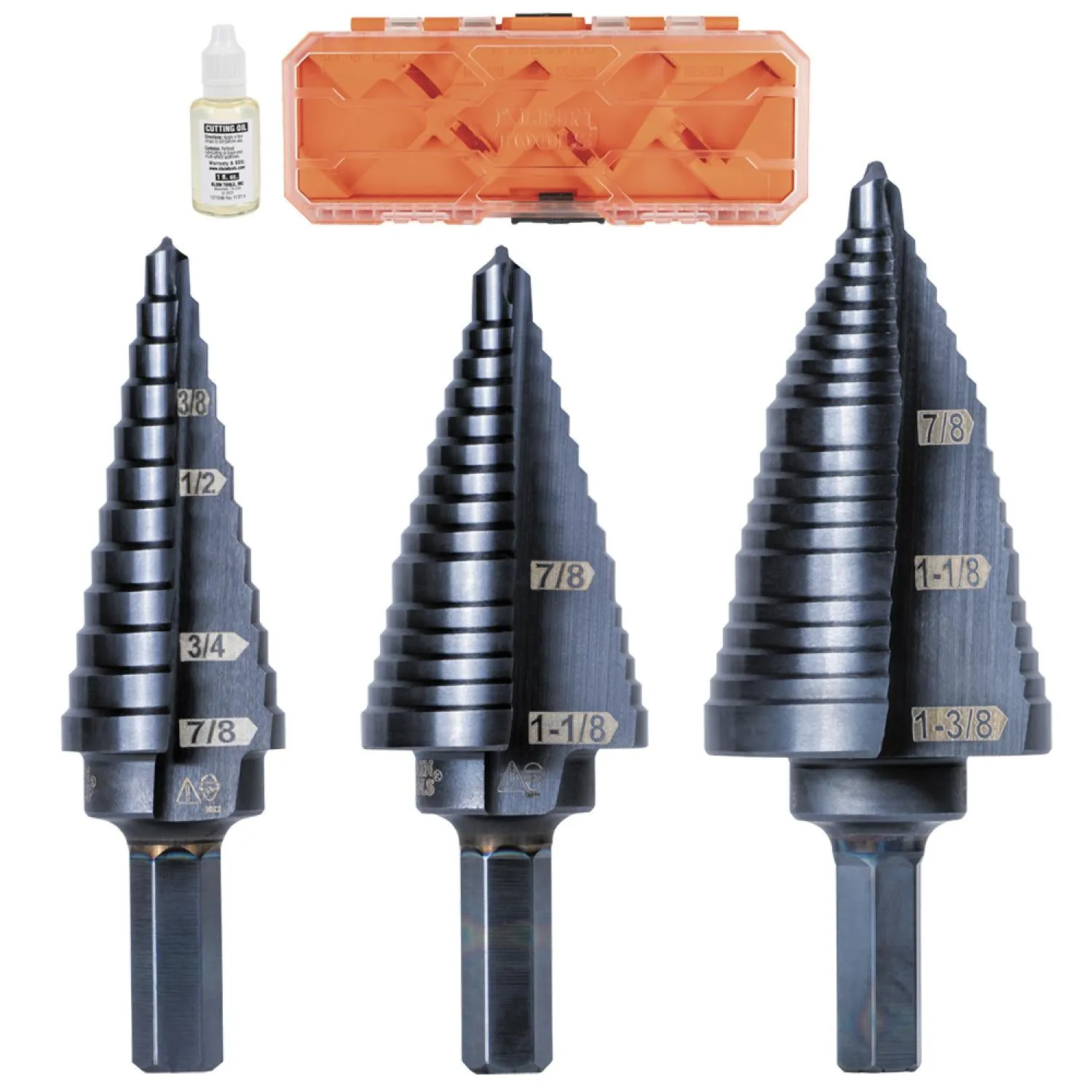

Quick Reference: #14, #11, #15
Number of Holes: 12, 2, 3
Size:
3/16" to 7/8" (4.8 to 22.2 mm)
7/8" to 1-1/8" (22.2 to 28.6 mm)
7/8" to 1-3/8" (22.2 to 34.9 mm)
Quick Reference: #14, #11, #15
Number of Holes: 12, 2, 3
Size:
3/16" to 7/8" (4.8 to 22.2 mm)
7/8" to 1-1/8" (22.2 to 28.6 mm)
7/8" to 1-3/8" (22.2 to 34.9 mm)
Drive Connector Size
3/8"
Features
Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life

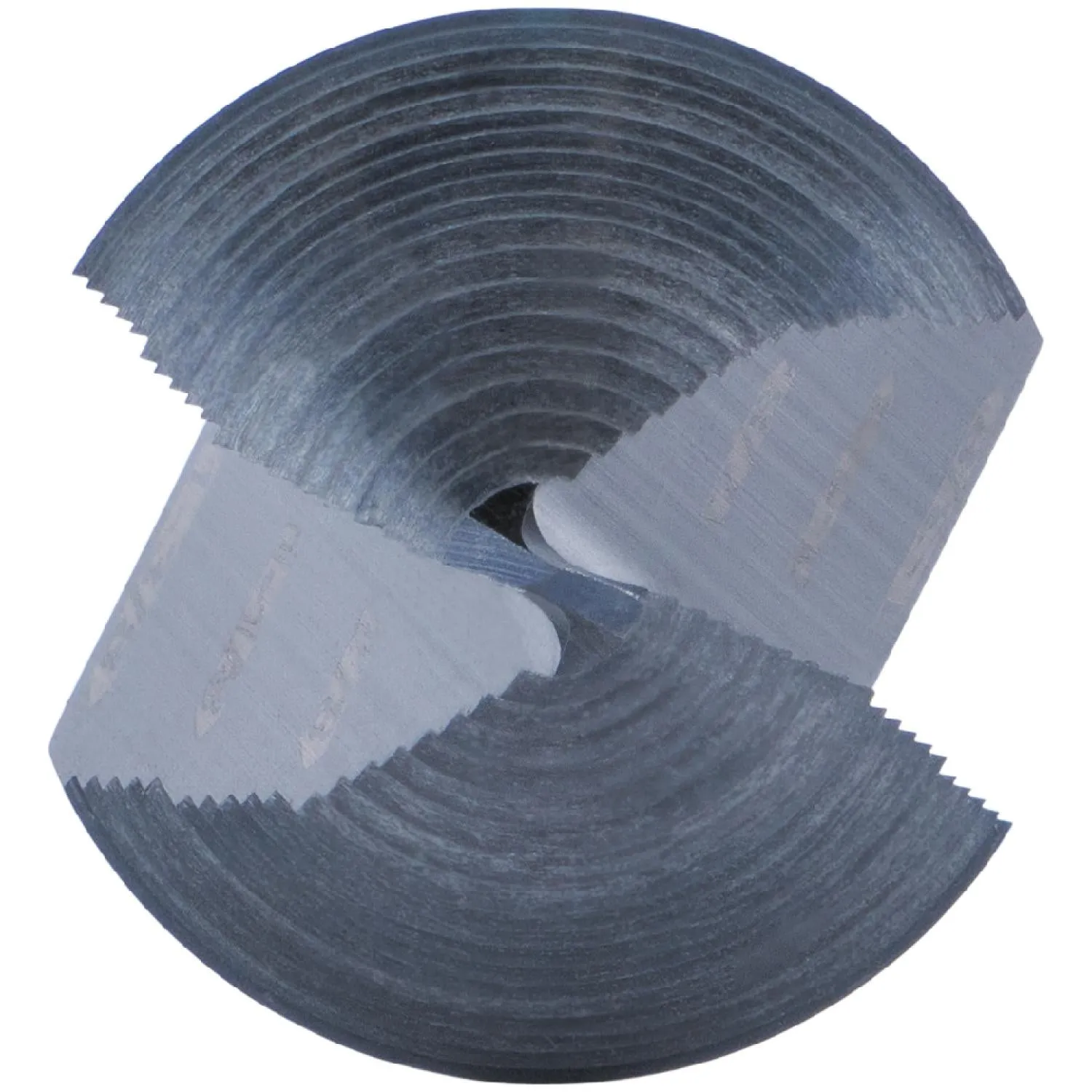

Double, straight flute removes chips for clean cuts and drilling

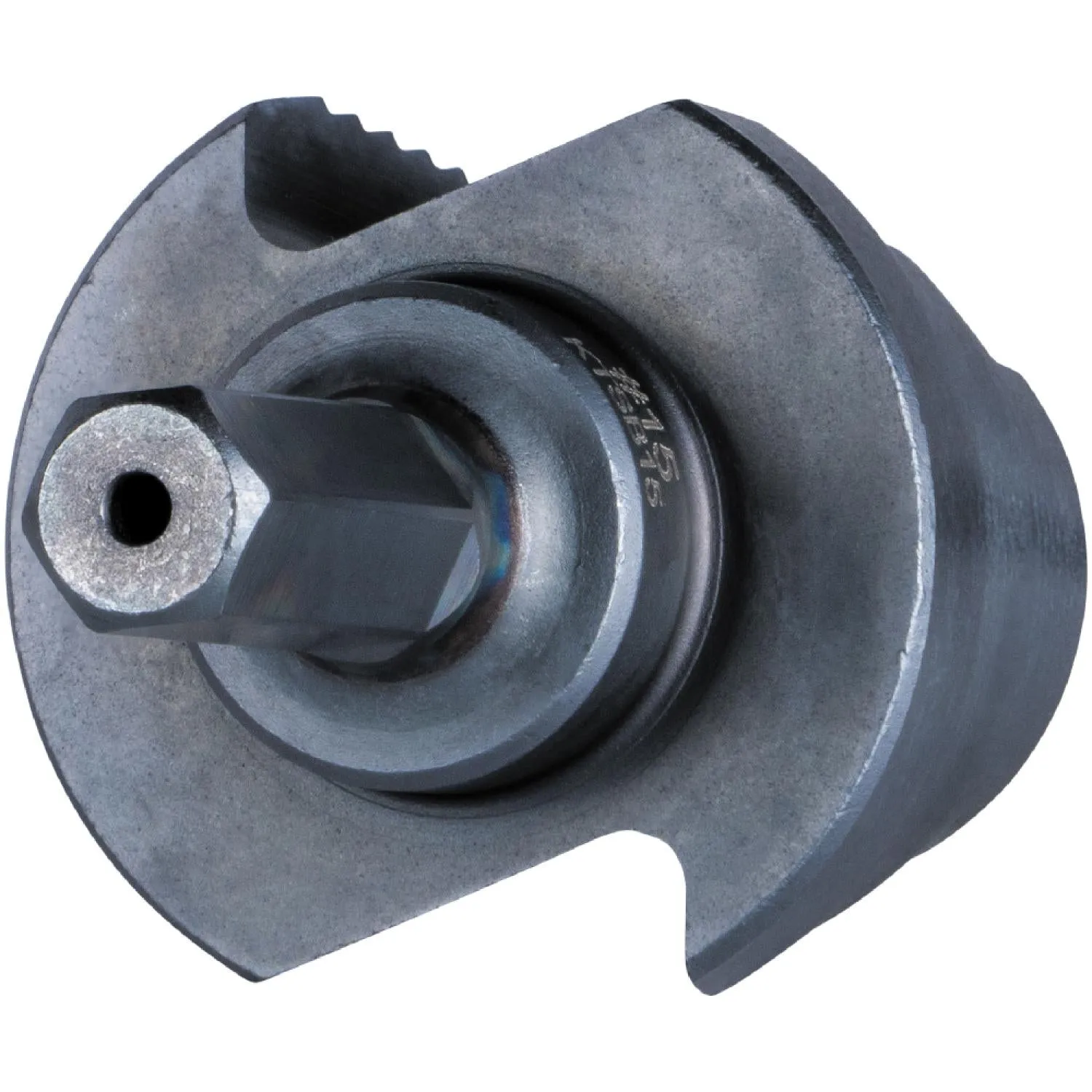

Durable, 3/8-Inch hex shank provides a firm, positive grip and won't spin out in the drill

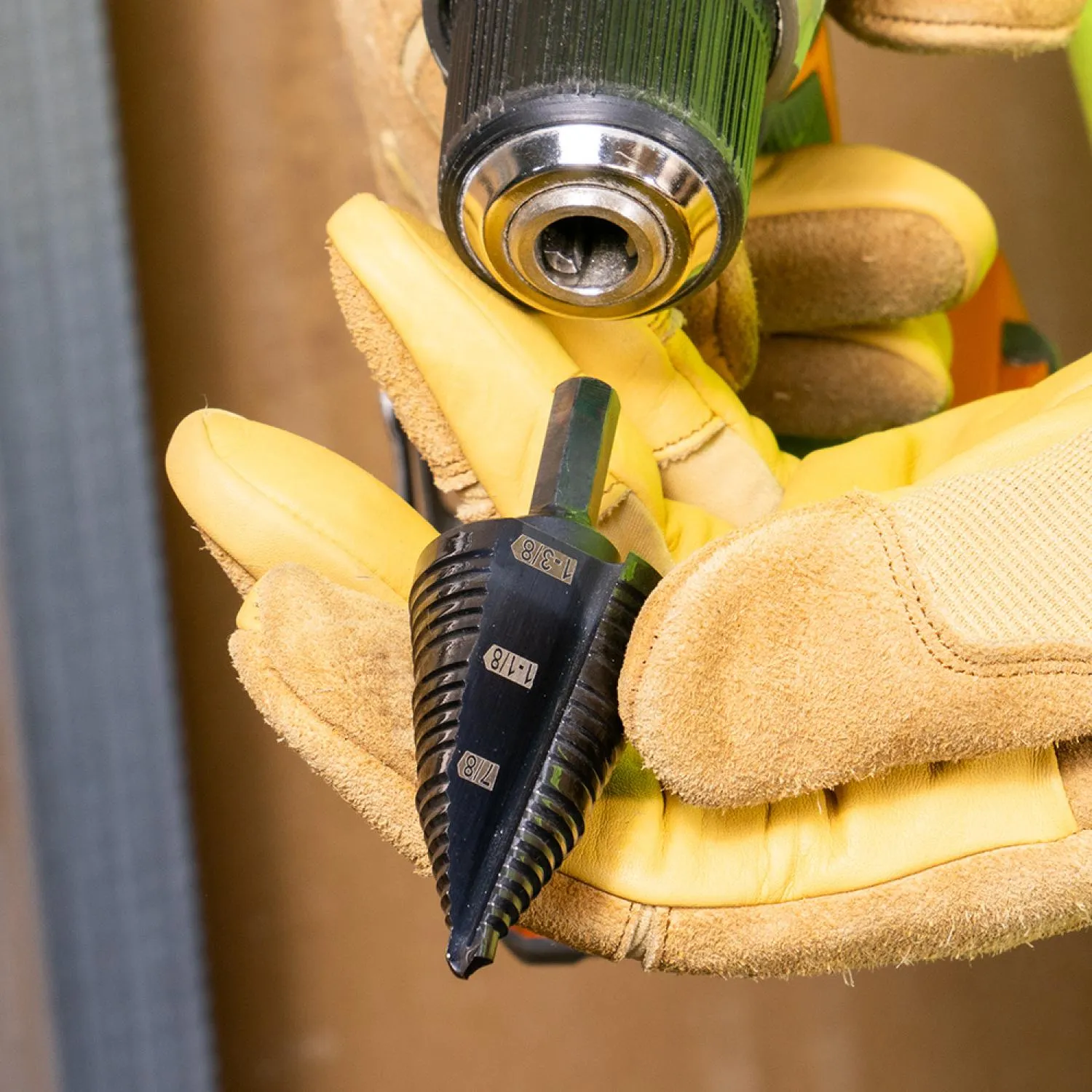

Laser markings are easy to read for quick size identification
Fast-starting, non-walking drill tip

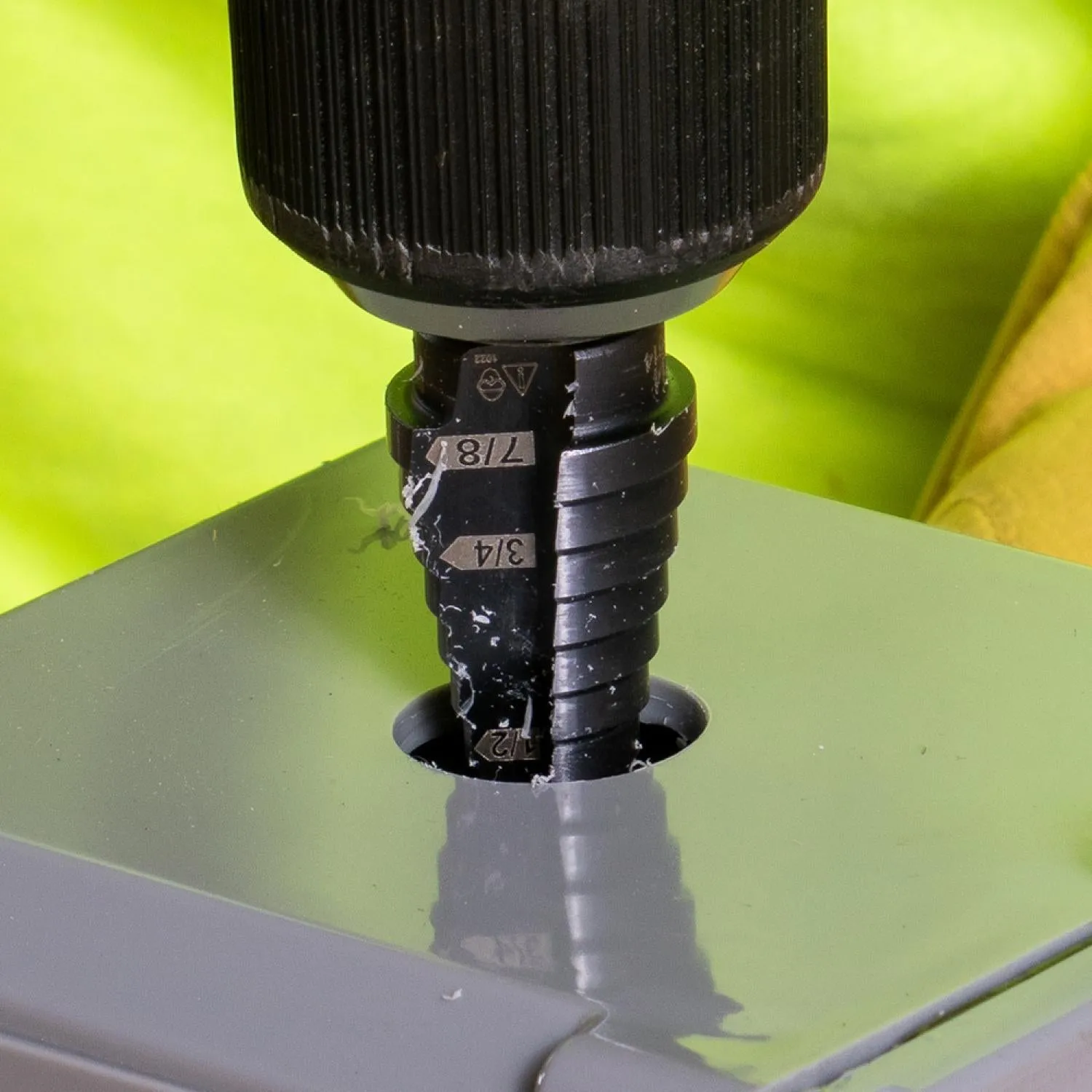

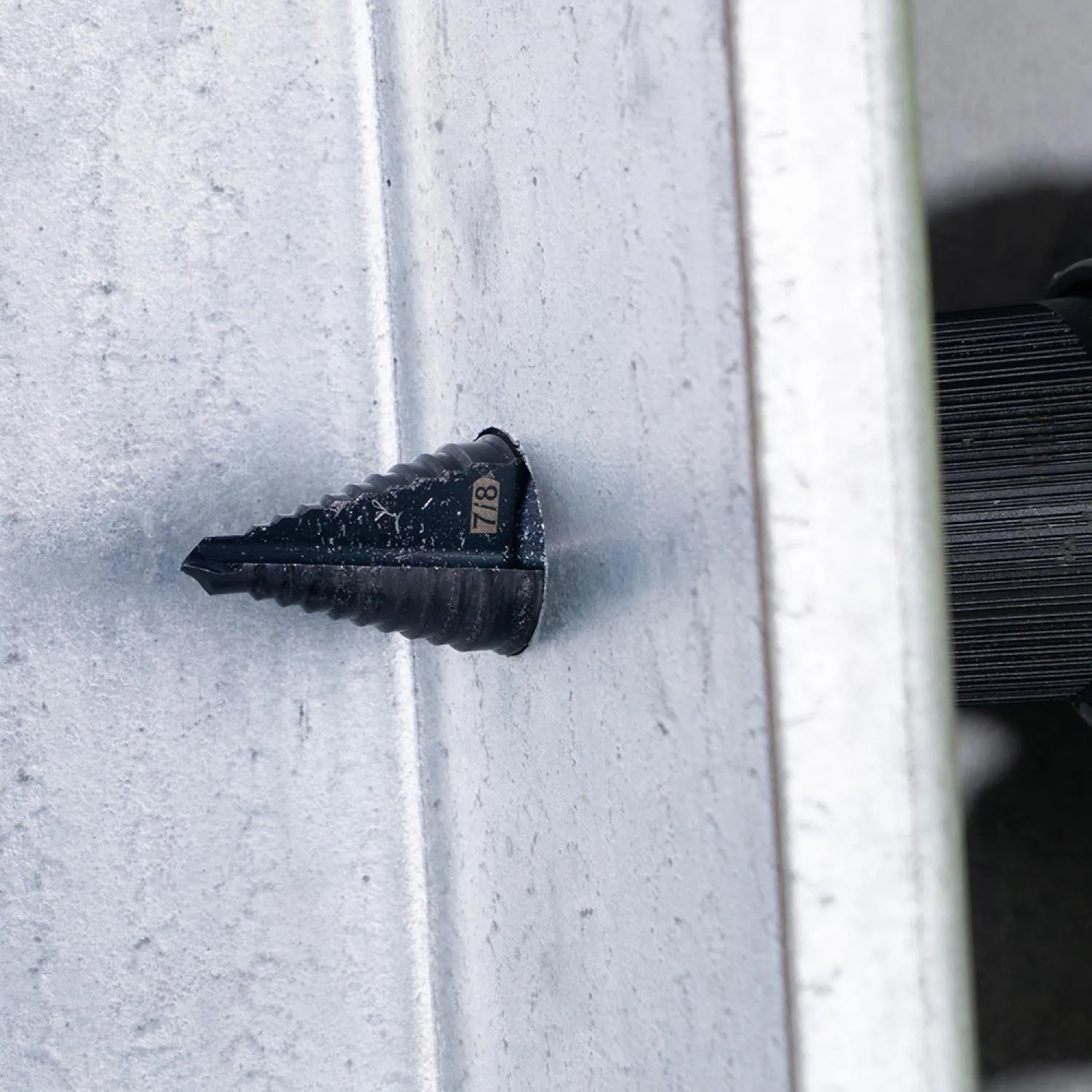

For use on steel (up to 16 gauge), wood, plastic, and aluminum

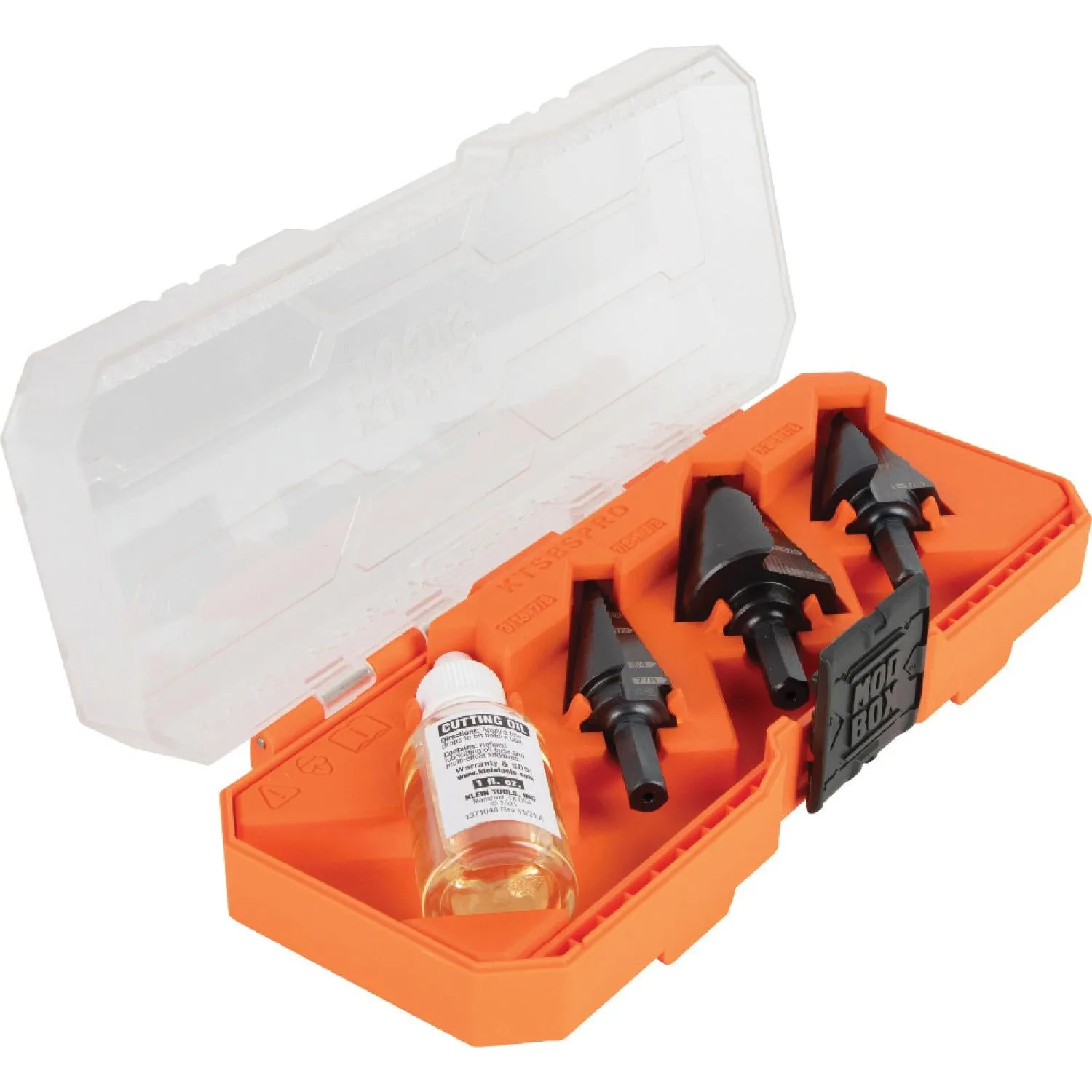

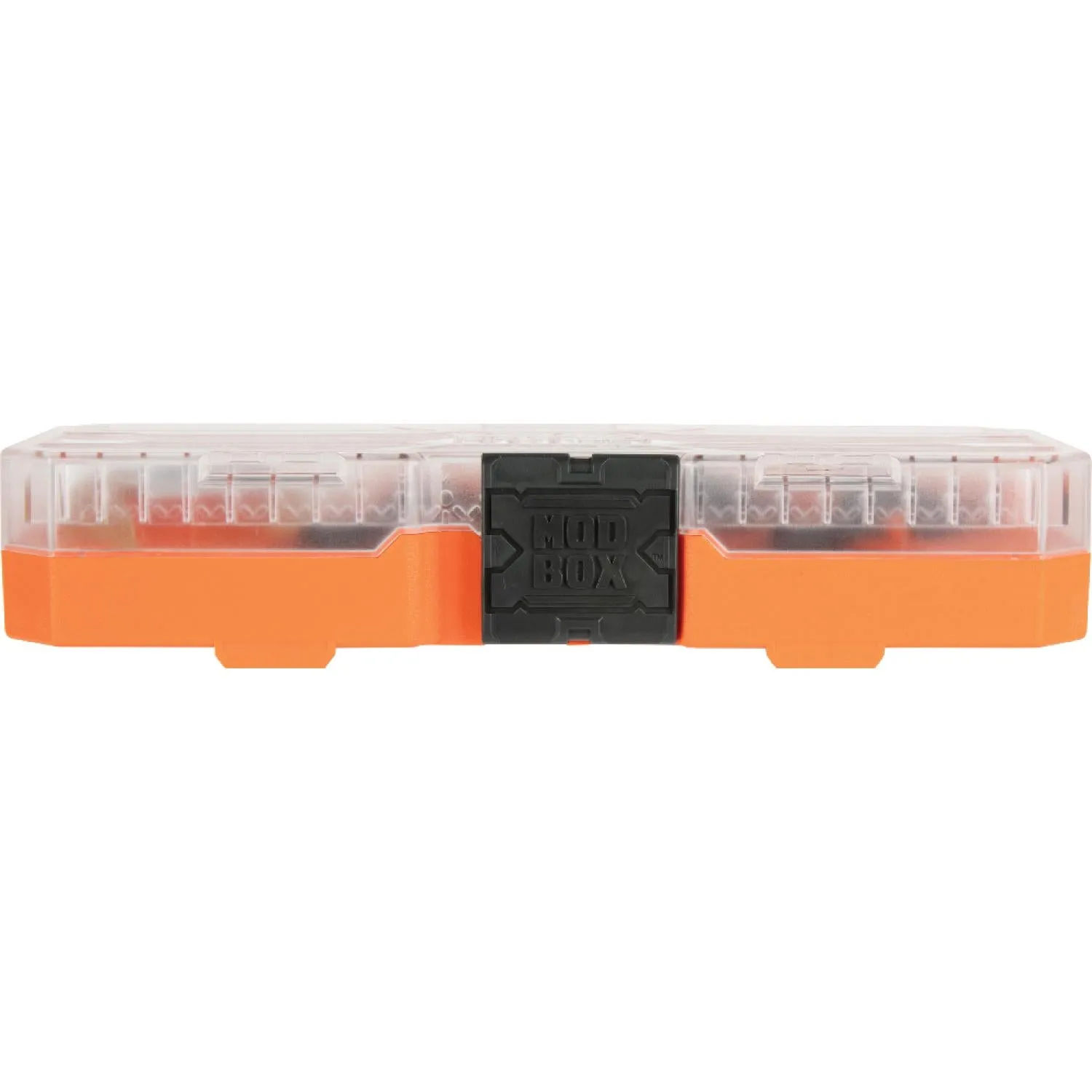

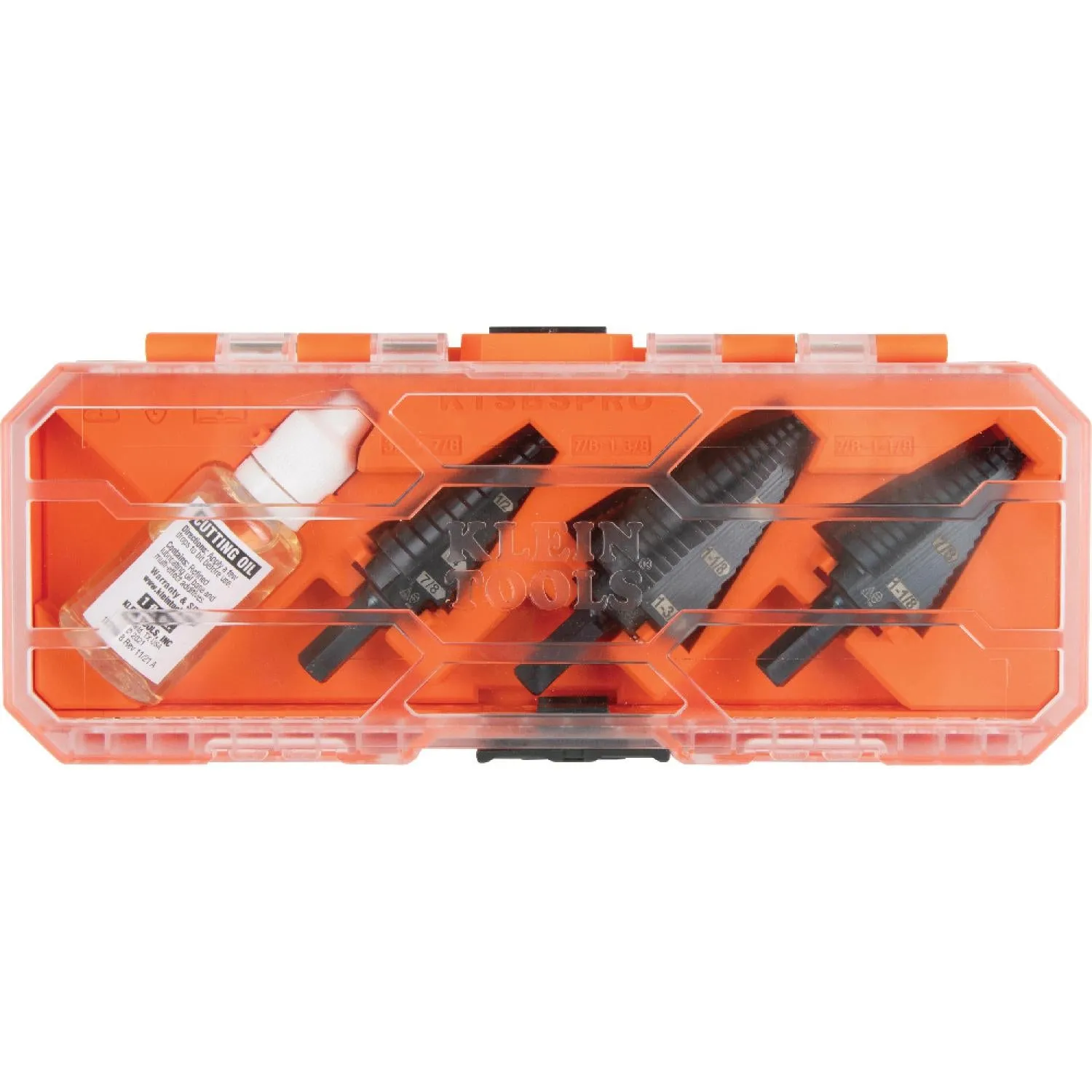

The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox toolboxes and on the MODbox Case Adapter Side Rail Attachment
Double, straight flute removes chips for clean cuts and drilling
Durable, 3/8-Inch hex shank provides a firm, positive grip and won't spin out in the drill
Laser markings are easy to read for quick size identification
Fast-starting, non-walking drill tip
For use on steel (up to 16 gauge), wood, plastic, and aluminum
The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox toolboxes and on the MODbox Case Adapter Side Rail Attachment
