Product Details
＋
General Information
Brand
Klein Tools
Part Number
TI270
Product Type

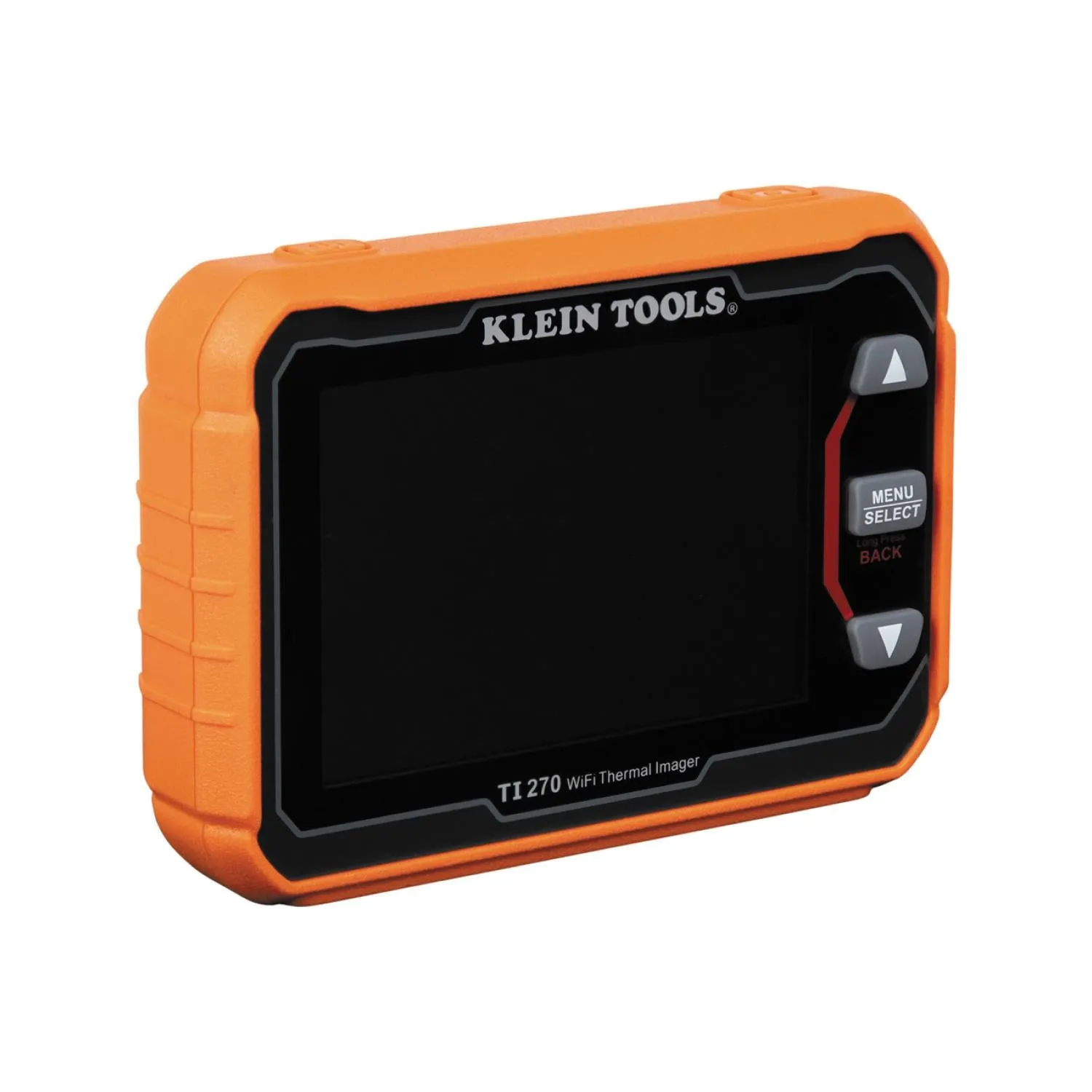

Thermal Imager
Application
View Hot and Cold Spots for Instant Troubleshooting
Number of Pieces
4
What's Included

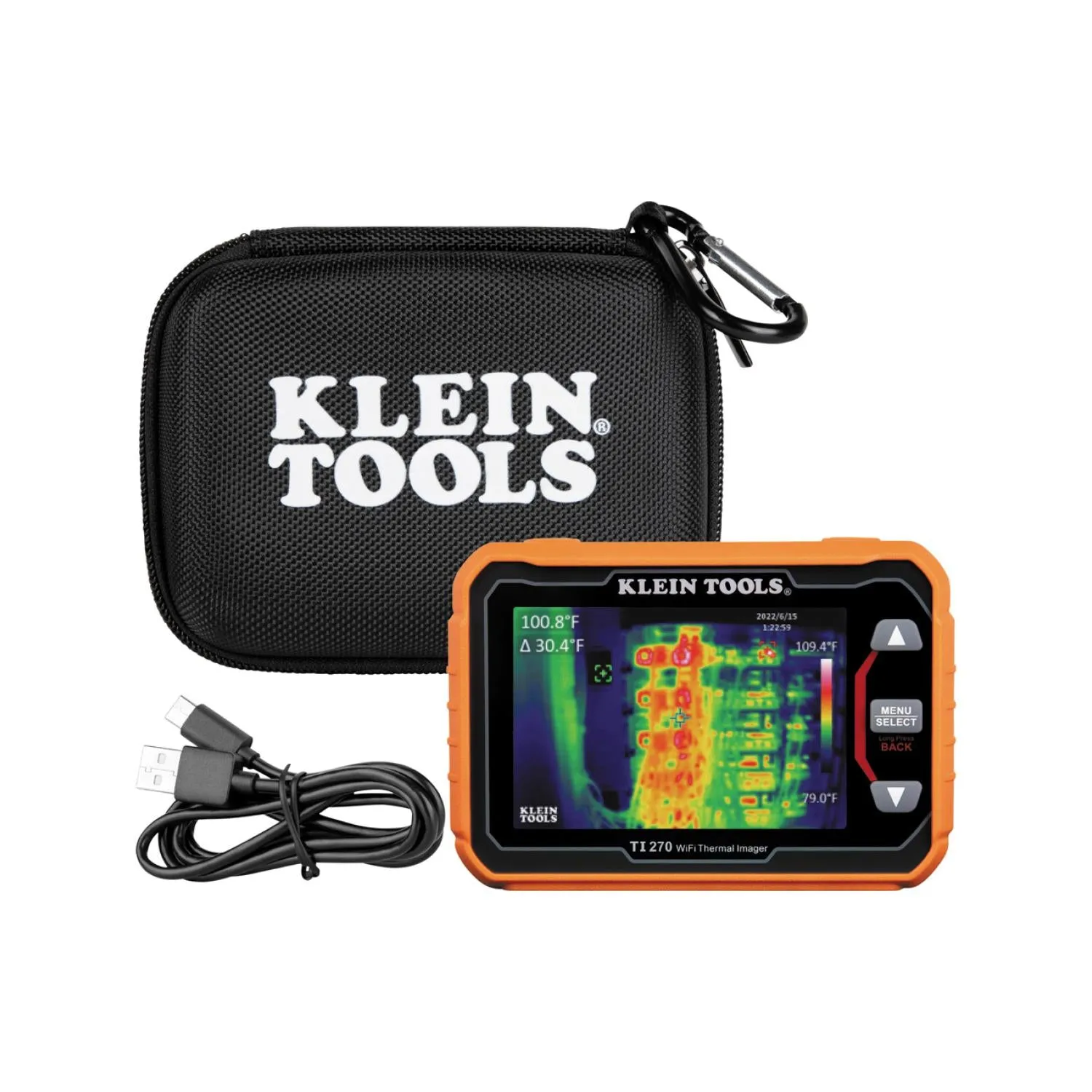

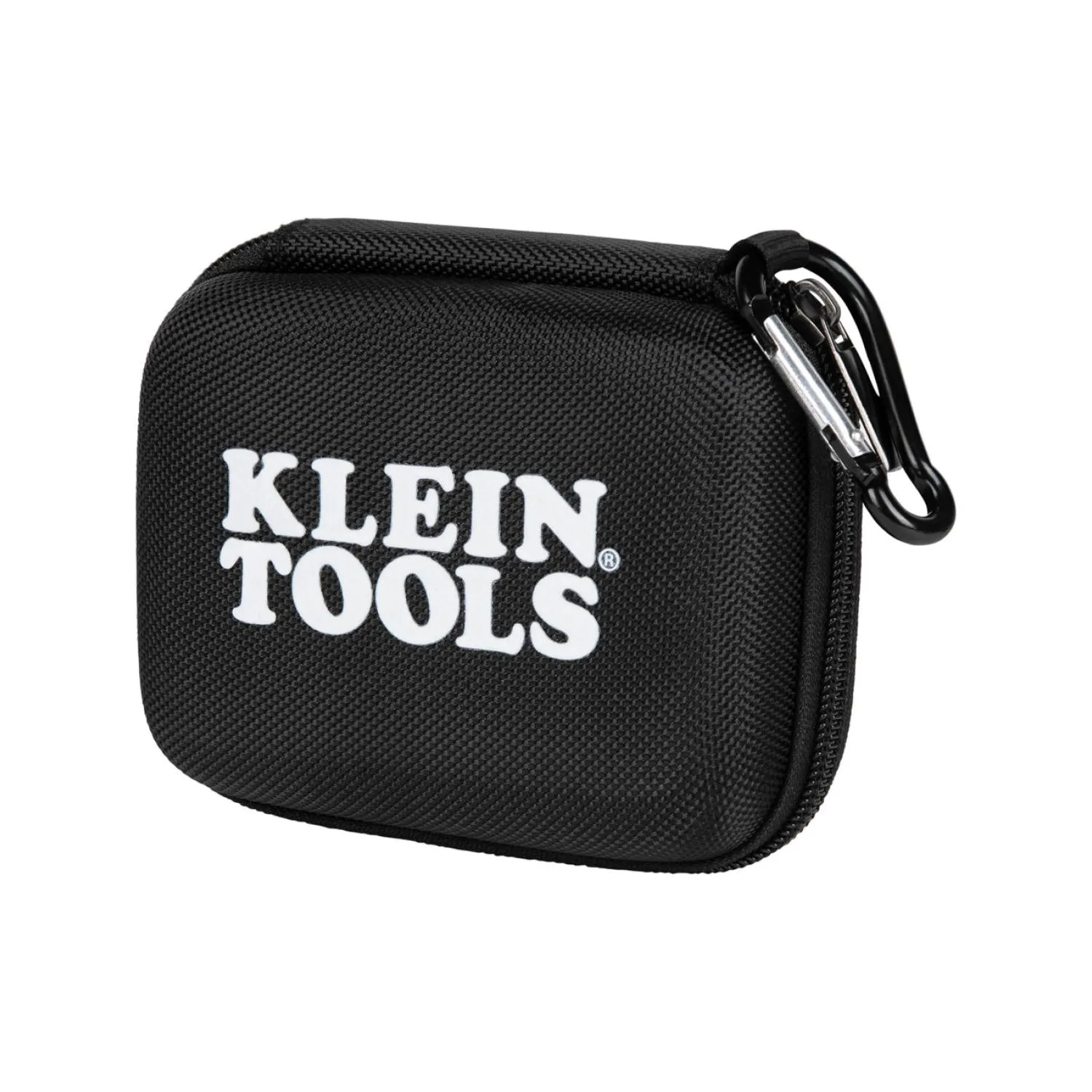

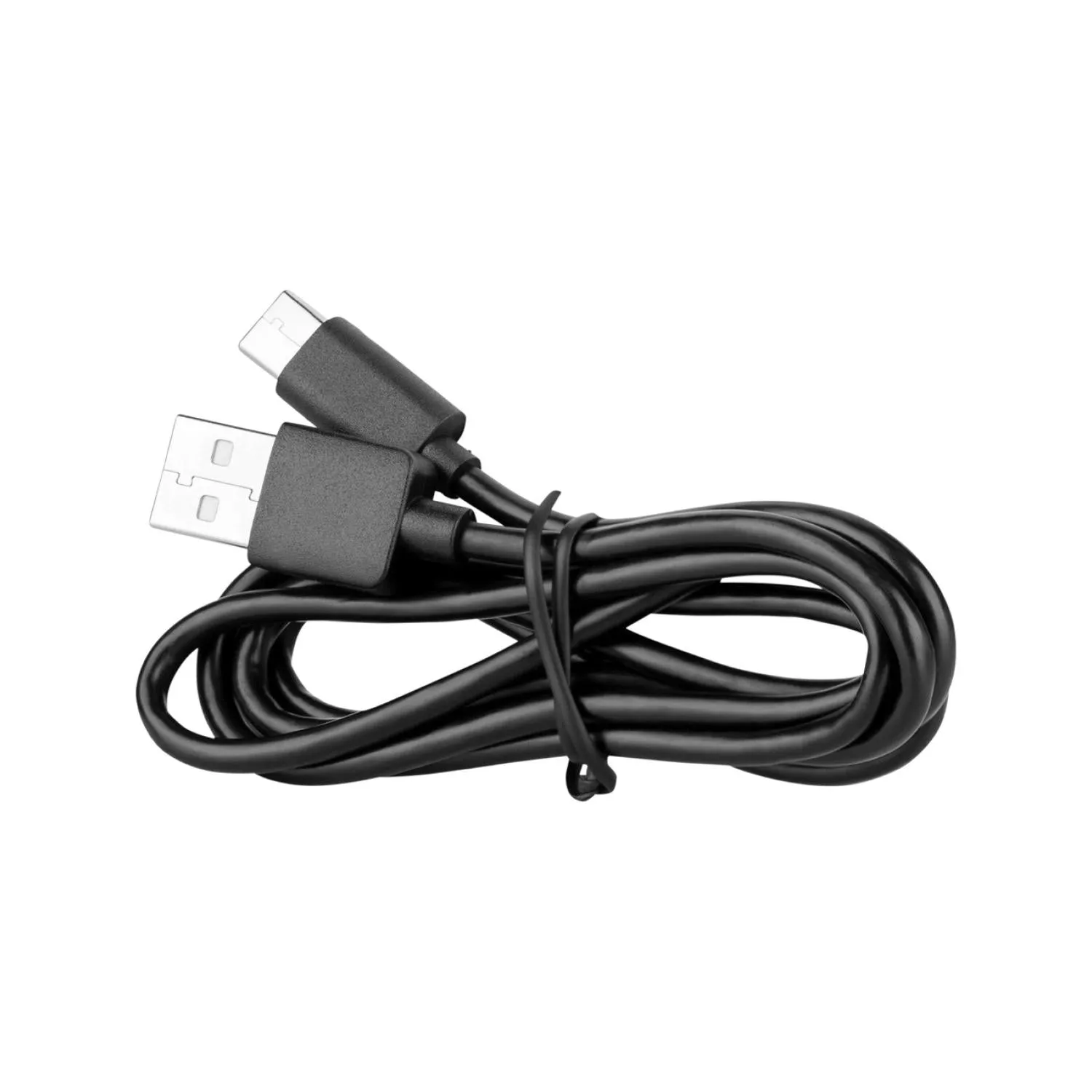

Rechargeable Thermal Imager, USB-C Charging Cable,Molded Soft-Storage Case with Carabiner, and Instructions
Packaging
Retail
UPC
092644693984
California Residents
Physical Characteristics
Length
3.1'' (8 cm)
Width
1.06'' (3 cm)
Height
4.48'' (11.4 cm)
Weight
0.21 kg
0.47 lb
Color
Orange / Black
Material
ABS and Electronic Components
Durability
6.6-Foot (2 m)
Details
Features
Display: 3.5'' (8.9 cm) TFT LCD
Display Resolution: 480 x 320 Pixels
Sensor Type: VOx Microbolometer
Sensor Resolution: 10,800 Pixels
Thermal Sensitivity: 60 mK
Spectral Range: 8 to 14m
Temperature Range: -4 to 752F (-20 to 400C)
Accuracy: 3C (5.4F) or 3%, Whichever is Greater
Field of View: 50 /- 3
Laser Sighting: No
Emissivity: 0.01 to 0.99, Adjustable
Color Palette: Ironbow, Rainbow, Grayscale
Photo Capture: Yes and Wi-Fi Data Transfer
Maximum Frames per Second: <9 Hz
Memory: 10,000 Images
Standards: CE and UKCA
Battery: Lithium-Ion
Battery Life: 5-year
Display Resolution: 480 x 320 Pixels
Sensor Type: VOx Microbolometer
Sensor Resolution: 10,800 Pixels
Thermal Sensitivity: 60 mK
Spectral Range: 8 to 14m
Temperature Range: -4 to 752F (-20 to 400C)
Accuracy: 3C (5.4F) or 3%, Whichever is Greater
Field of View: 50 /- 3
Laser Sighting: No
Emissivity: 0.01 to 0.99, Adjustable
Color Palette: Ironbow, Rainbow, Grayscale
Photo Capture: Yes and Wi-Fi Data Transfer
Maximum Frames per Second: <9 Hz
Memory: 10,000 Images
Standards: CE and UKCA
Battery: Lithium-Ion
Battery Life: 5-year
