Product Details
＋
General Information
Brand
Klein Tools
Part Number
VDV500-920
Product Type
Tone Generator, Tracing Probe
Application
Wire Toning and Tracing

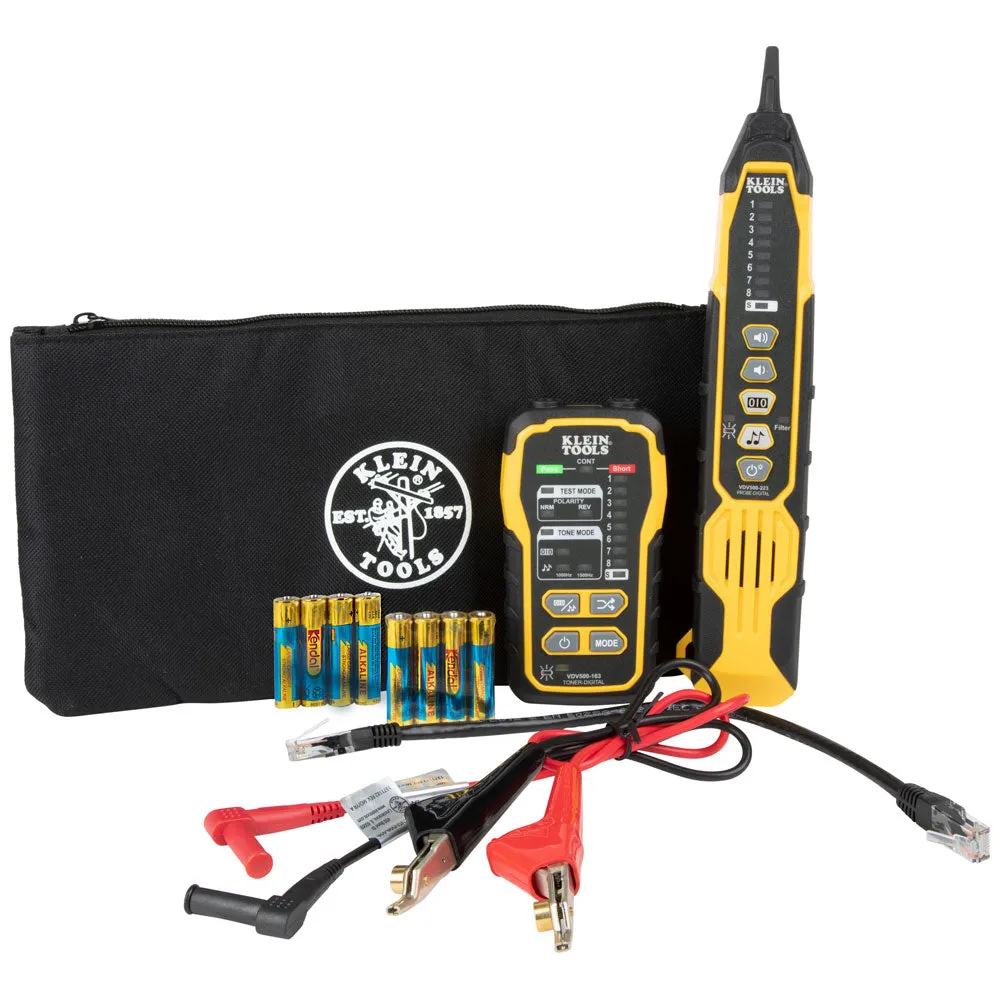

What's Included

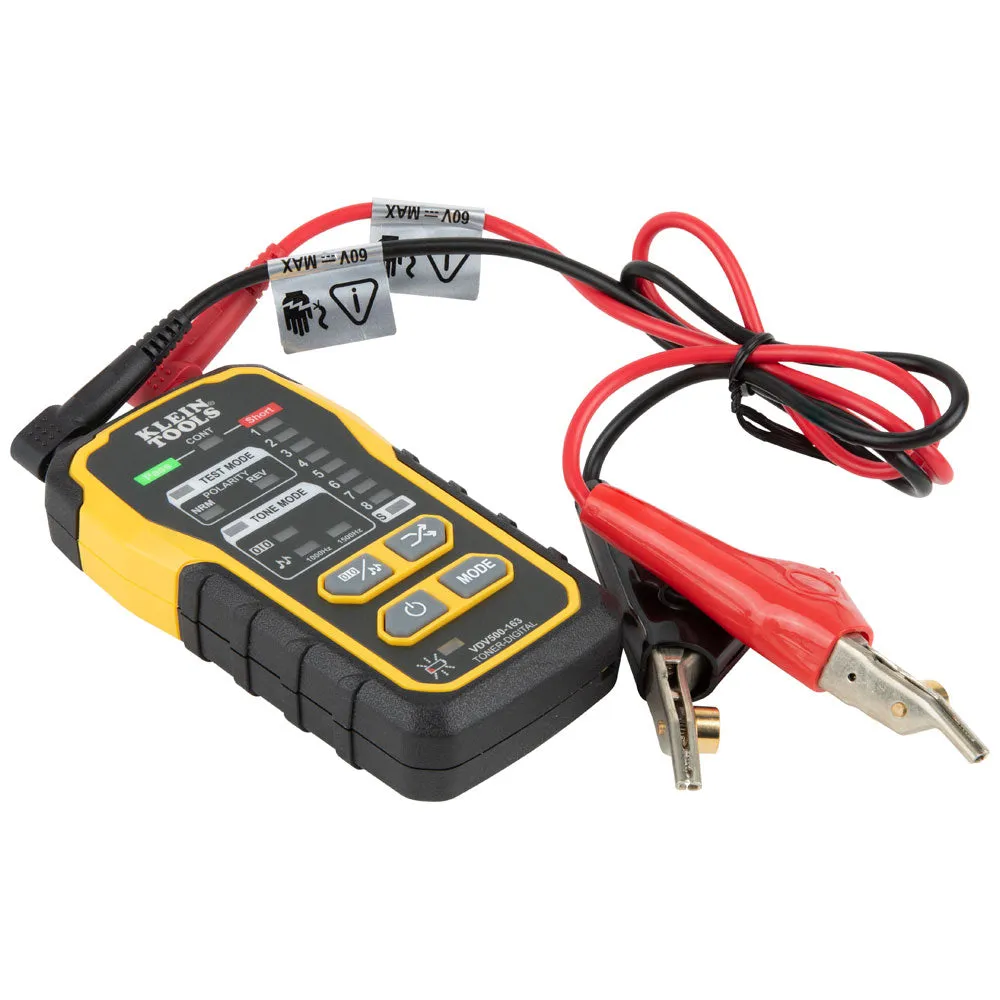

VDV500-163 Digital Tone Generator
VDV500-223 Digital Tracing Probe
Pouch

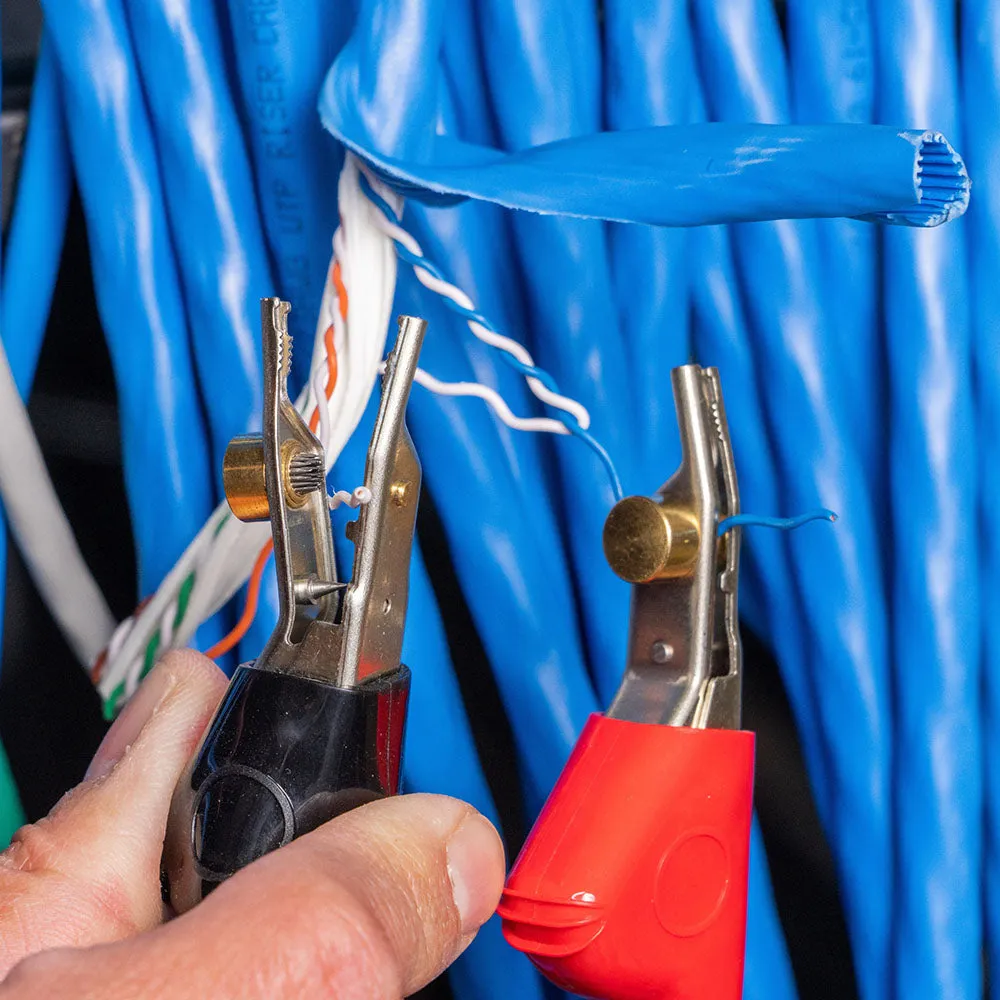

Test Leads
Instructions
All Required Batteries

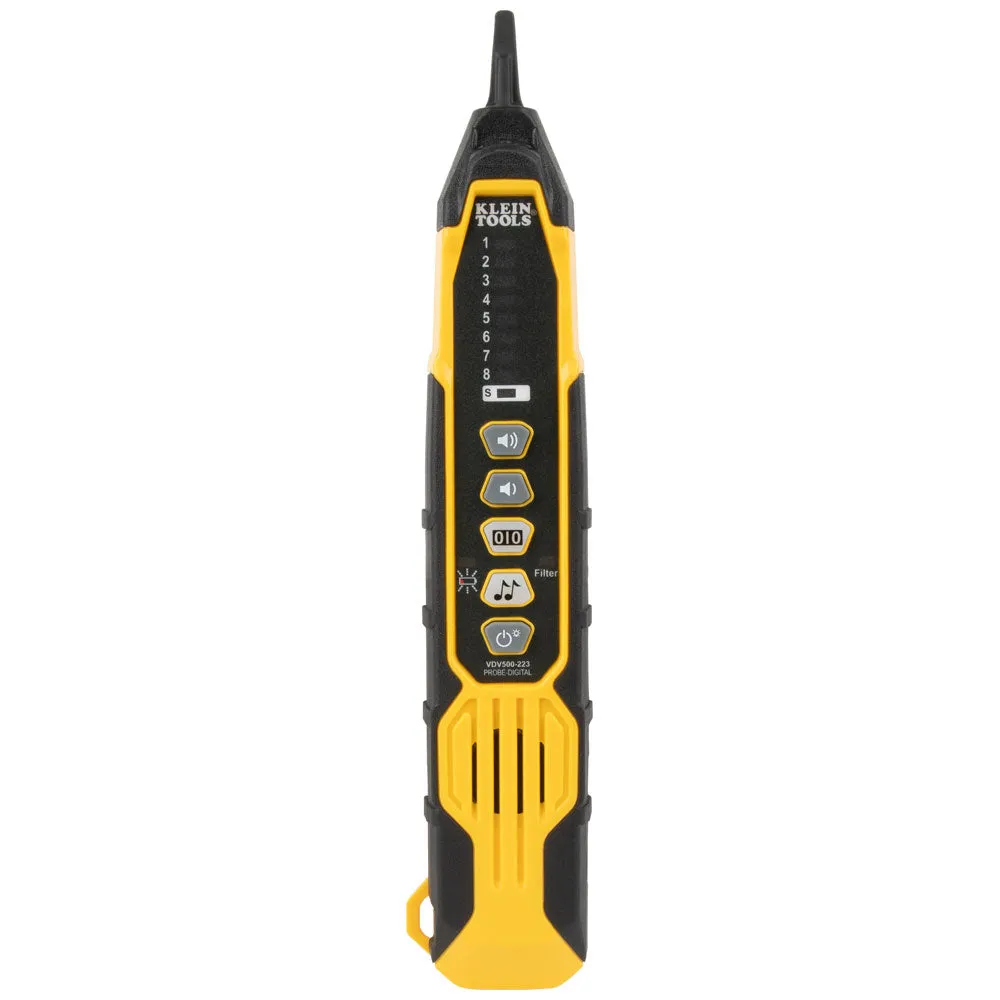

VDV500-223 Digital Tracing Probe
Pouch
Test Leads
Instructions
All Required Batteries
Packaging
Retail
UPC
092644583872
California Residents
Physical Characteristics
Length
6.8'' (17.3 cm)
Width
6.8'' (17.3 cm)
Height
6.8'' (17.3 cm)
Weight
0.64 kg
1.40 lb
Color
Yellow, Black, and Red
Material
ABS
Details
Features
Digital Tone Generator (Cat. No. VDV500-163) and Digital Wire Tracing Probe (Cat. No. VDV500-223) Set

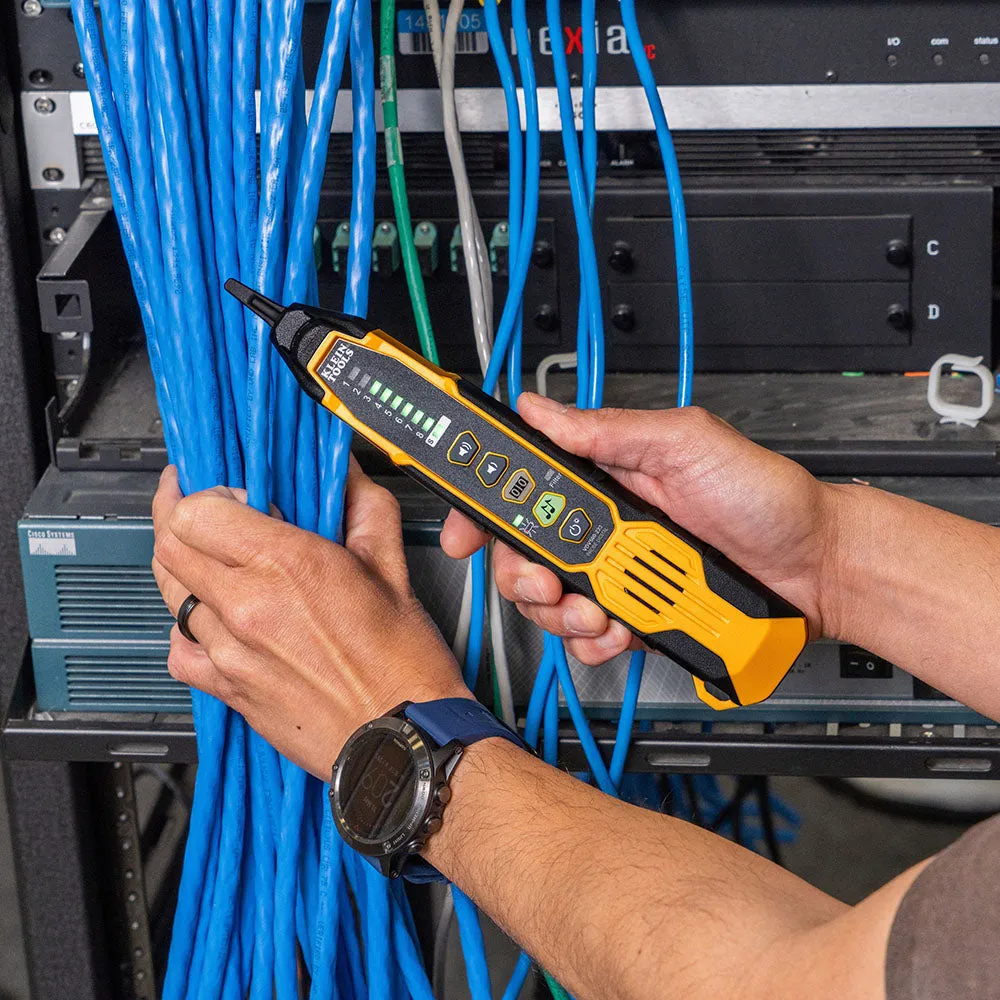

Trace and locate cables on an active network
Tone on cables connected to a switch or router without disconnecting cables
Rugged Angled Bed of Nails (ABN) to trace on unstripped wires
Wire mapping capabilities to check Pin-to-Pin connections with shield detection
60Hz filter for accurate tracing
Includes tone generator, tracing probe, various leads for testing, batteries, and instruction manual
Trace and locate cables on an active network
Tone on cables connected to a switch or router without disconnecting cables
Rugged Angled Bed of Nails (ABN) to trace on unstripped wires
Wire mapping capabilities to check Pin-to-Pin connections with shield detection
60Hz filter for accurate tracing
Includes tone generator, tracing probe, various leads for testing, batteries, and instruction manual
Batteries
8 x AAA
