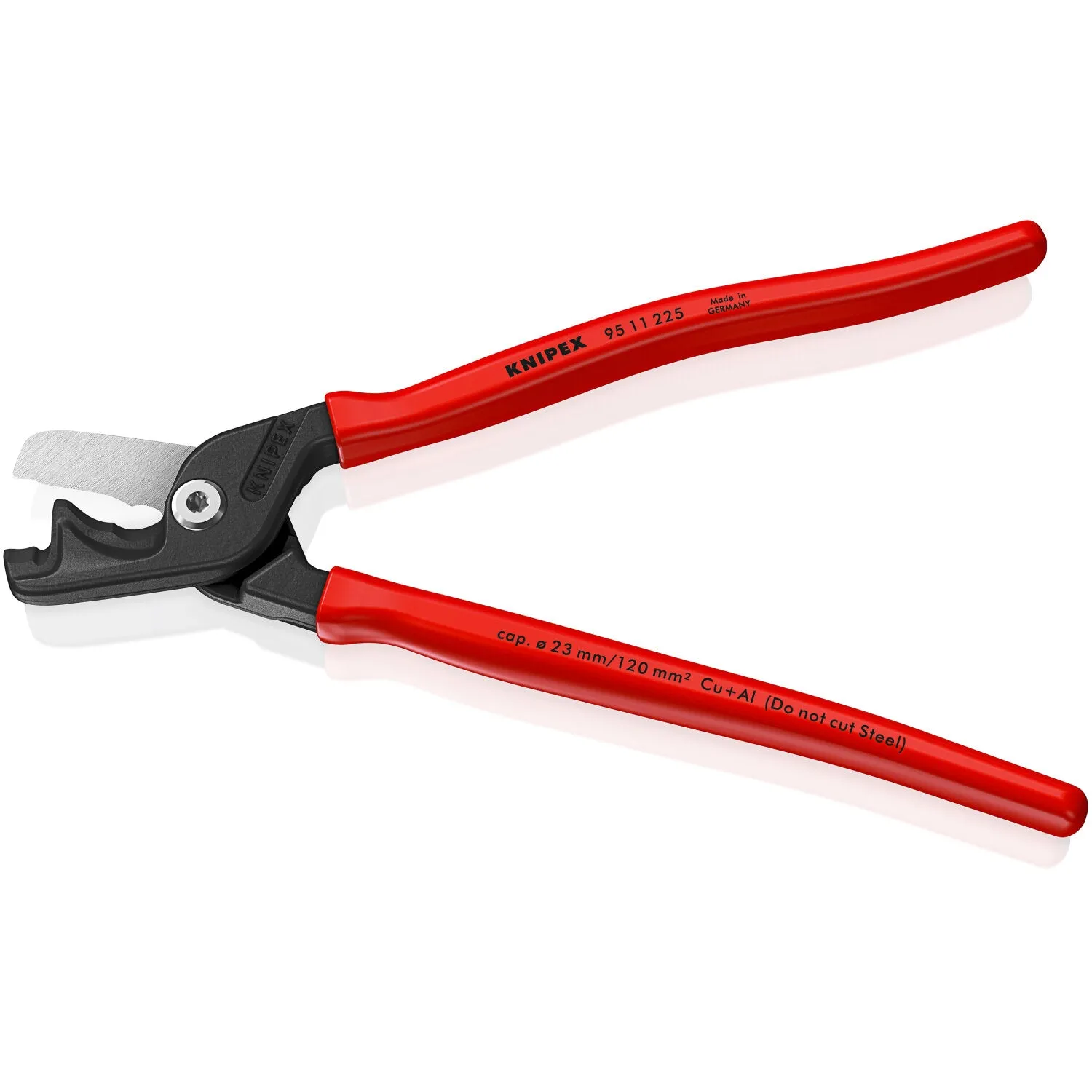

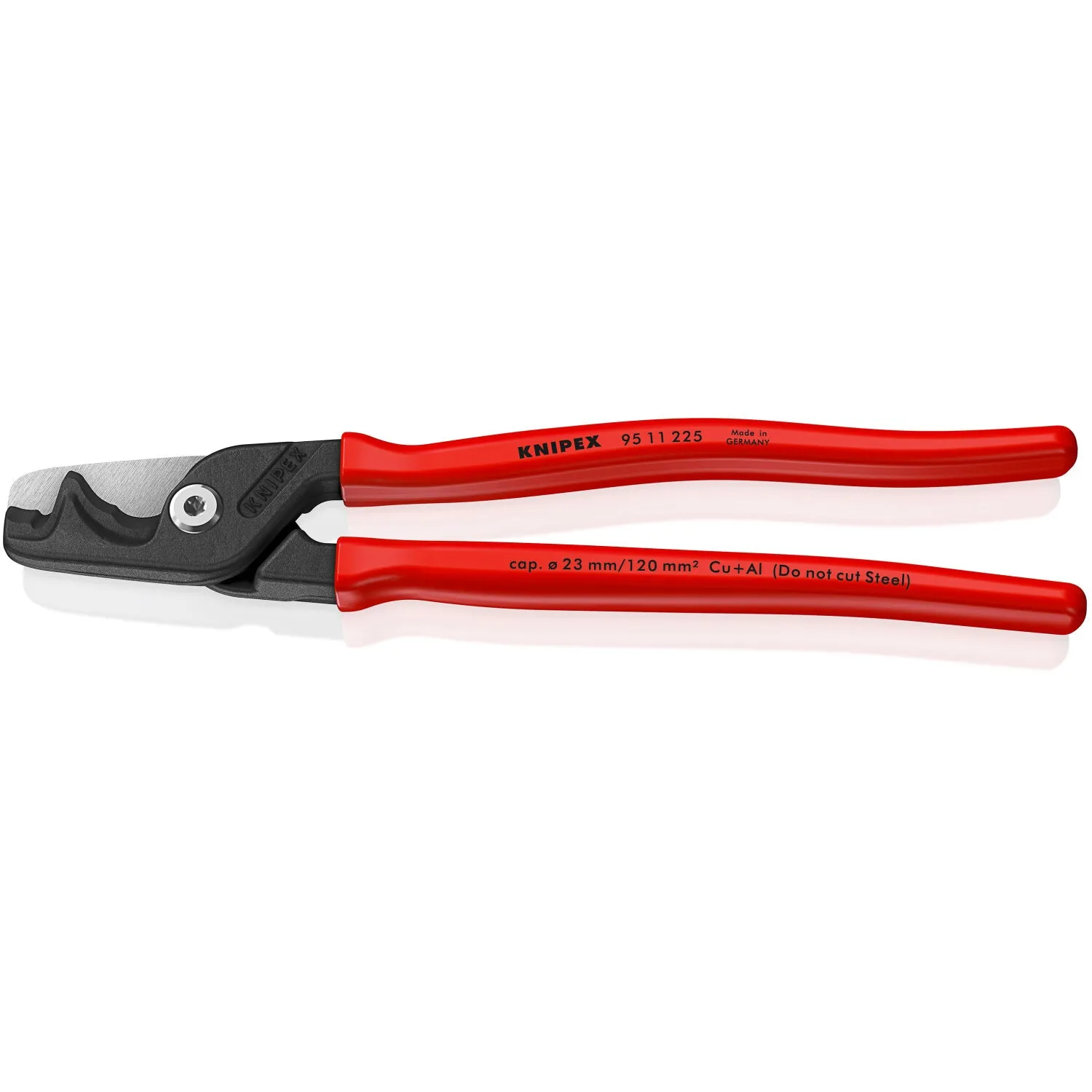

Product Details
＋
General Information
Brand
KNIPEX
Part Number
95 11 225 SBA
Product Type
Cable Shears
Packaging
Retail
Country of Origin
Germany
UPC
843221029739
California Residents
Physical Characteristics
Length
9.08"
Width
1.76"
Height
0.64"
Weight
0.37 kg
0.81 lb
Color
Black & Red
Finish
Burnished
Material
High-Grade Forged Tool Steel
Durability
Approx. 56 HRC
Details
Size
Compatible Cables: Stranded, Fine Stranded, Solid
Cutting Capacity - Cu and Al Conductor: 29/32"
Wire Size: Up to 2/0 AWG (Solid and Stranded Cables), Up to 4/0 AWG (Fine Stranded Cables)
Cutting Capacity - Cu and Al Conductor: 29/32"
Wire Size: Up to 2/0 AWG (Solid and Stranded Cables), Up to 4/0 AWG (Fine Stranded Cables)
Grip Type
Plastic Coating (6 1/4")
Pliers Type
Cable Shears
Jaw Width
1 1/4"
Jaw Length
1 1/4"
Jaw Thickness
1/2"
Features

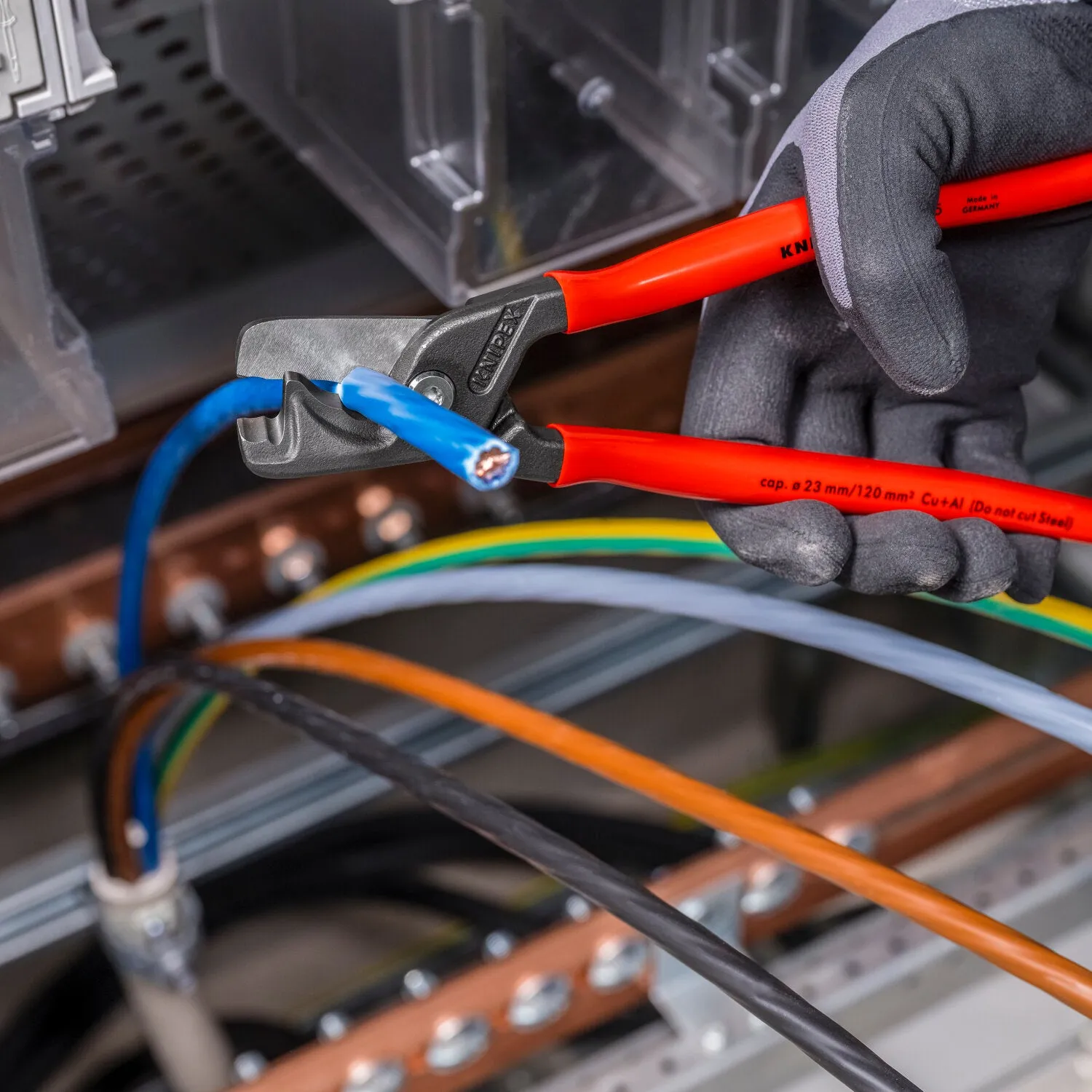

High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears
Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

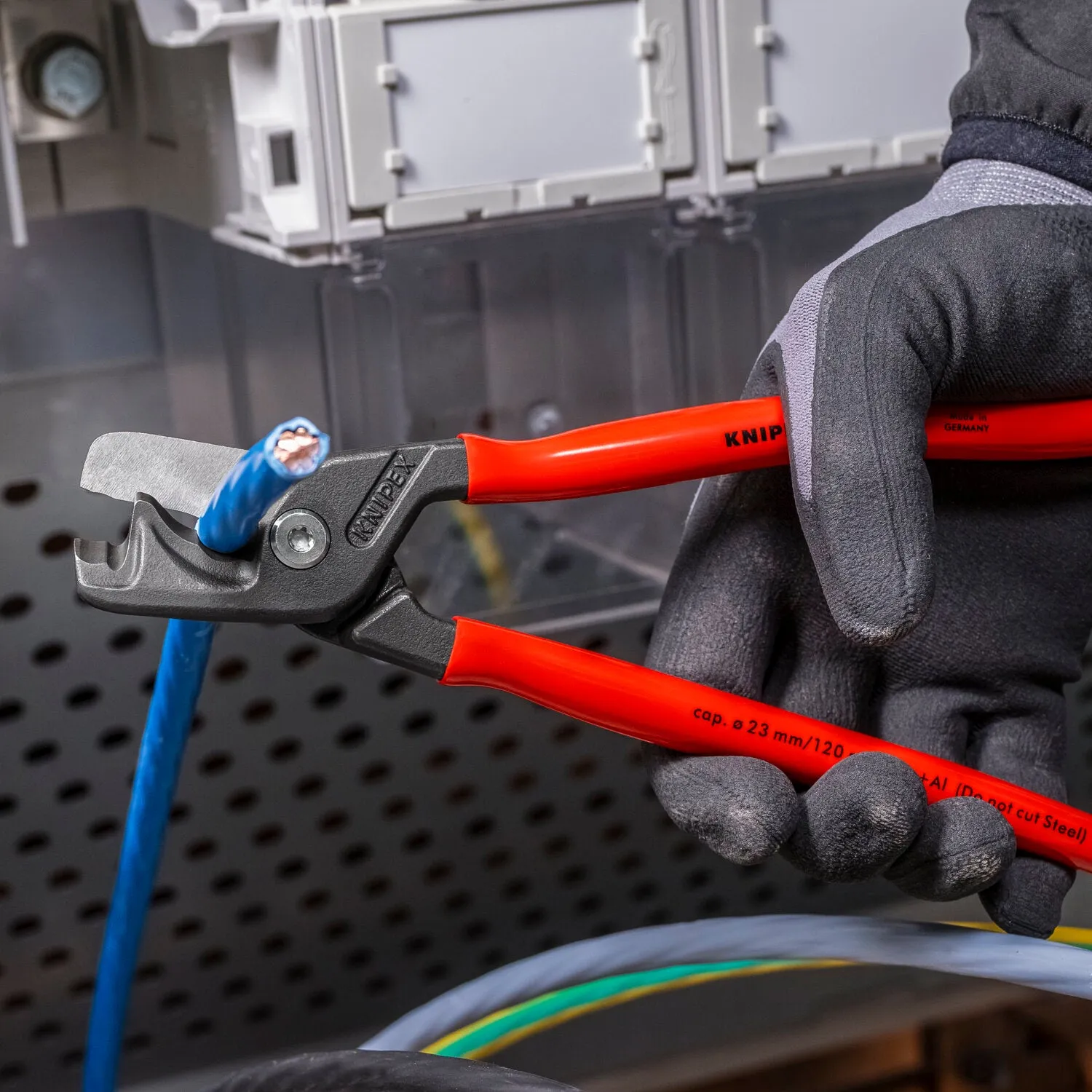

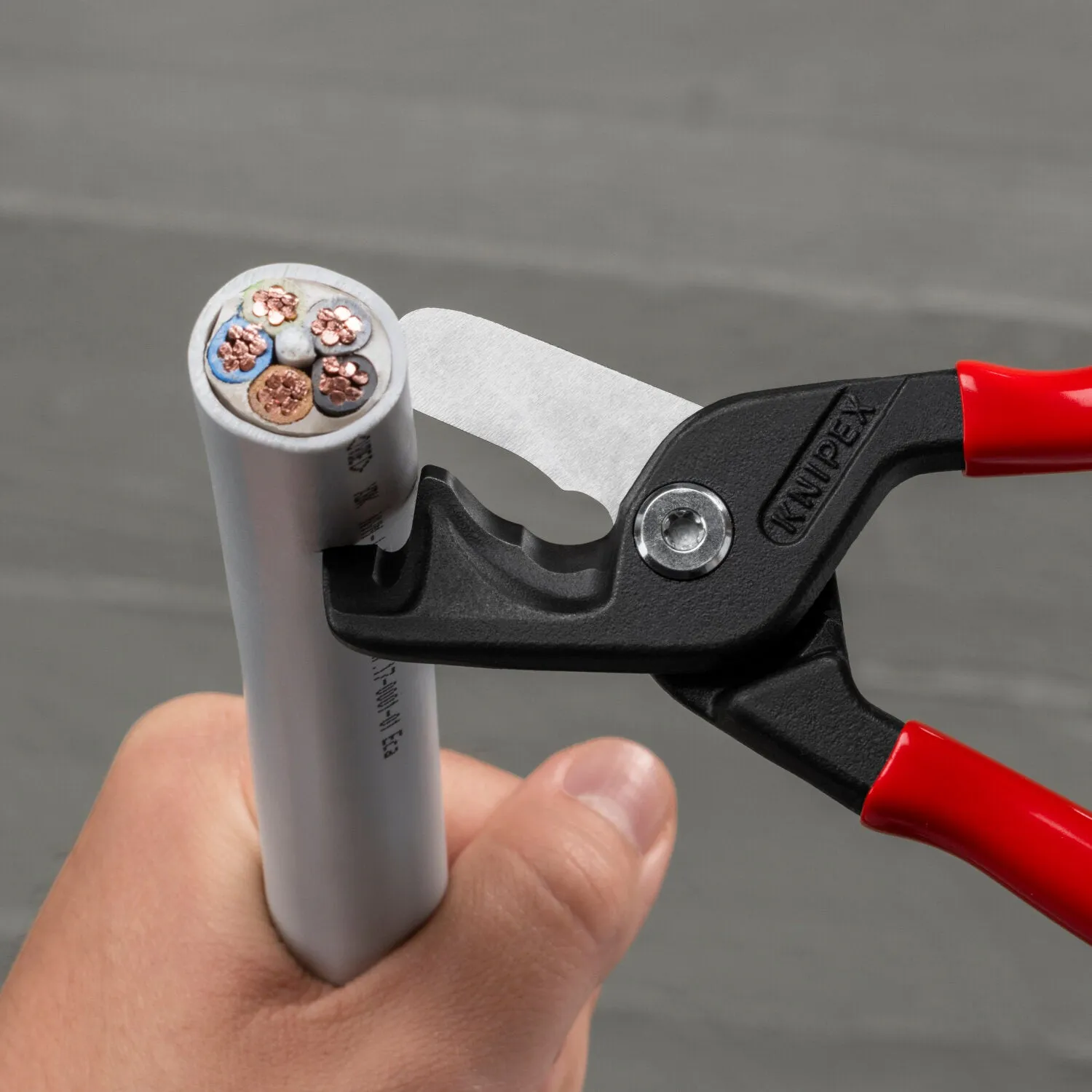

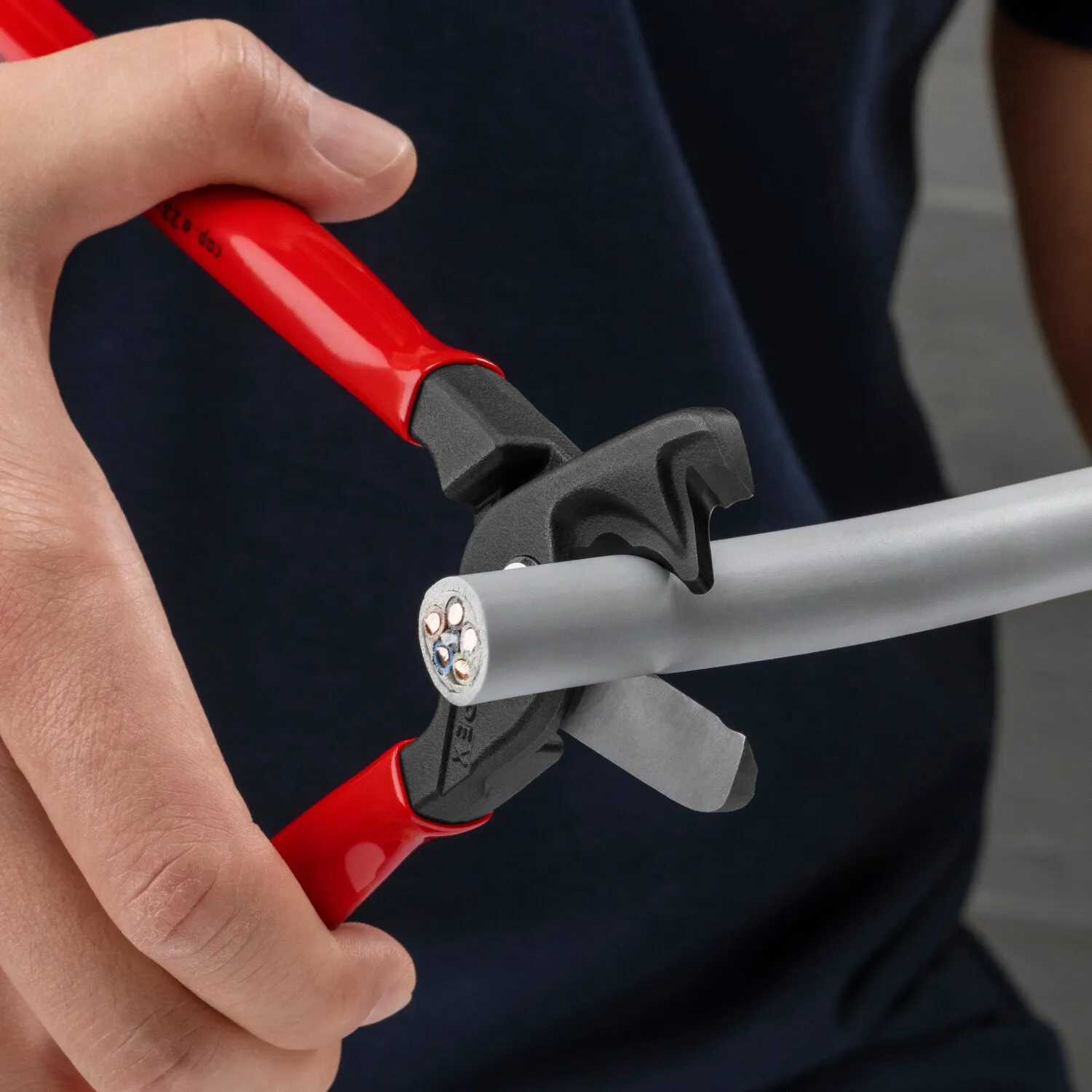

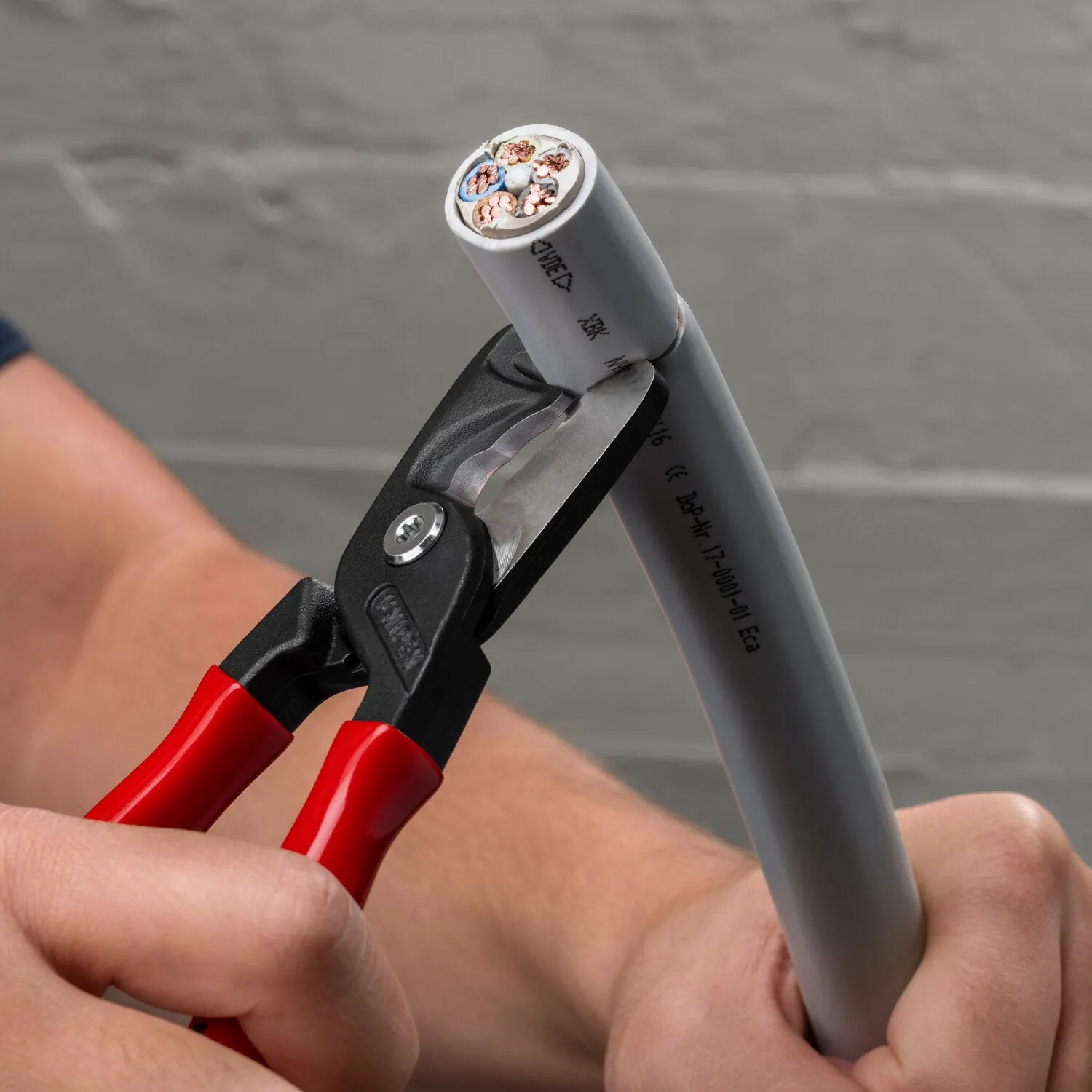

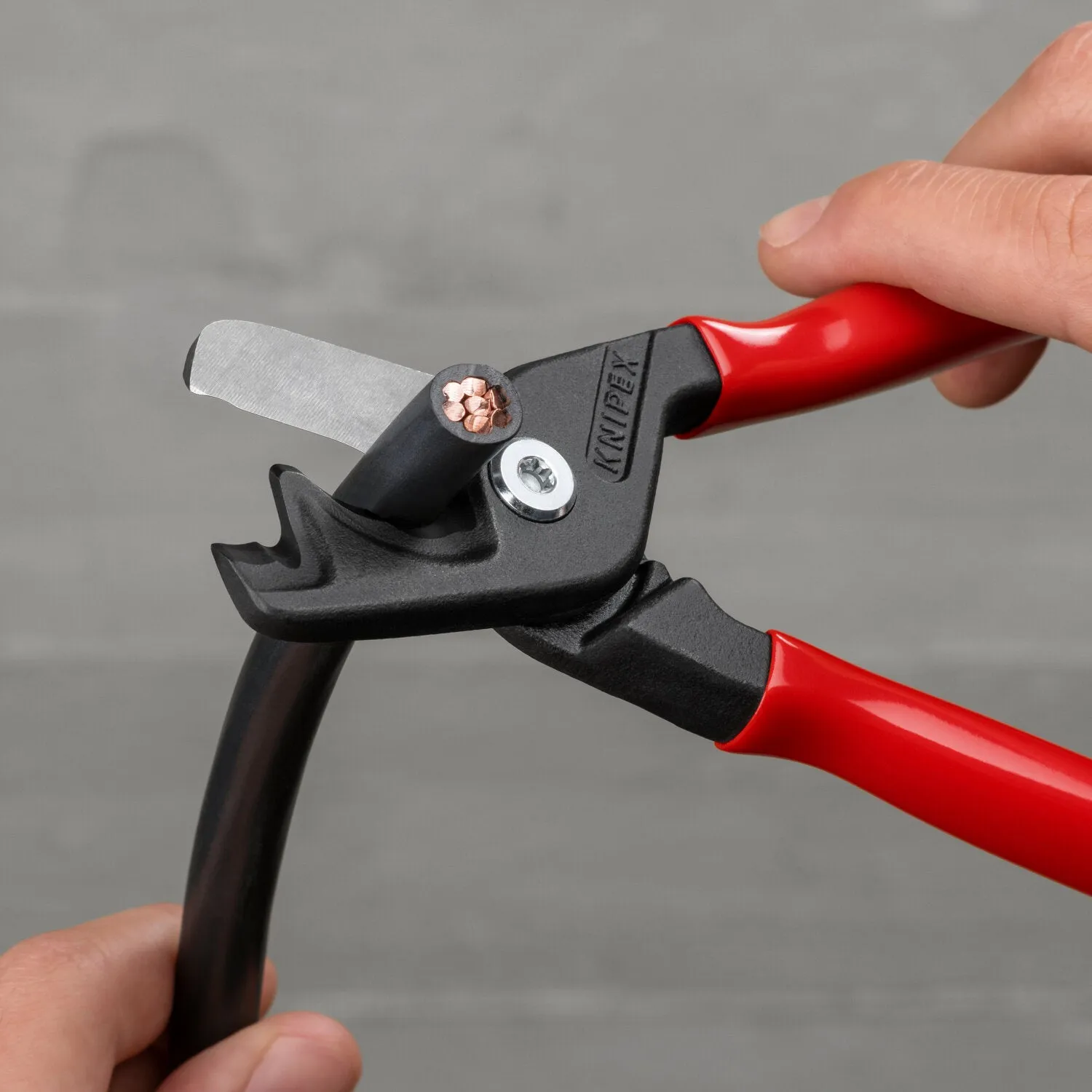

Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables

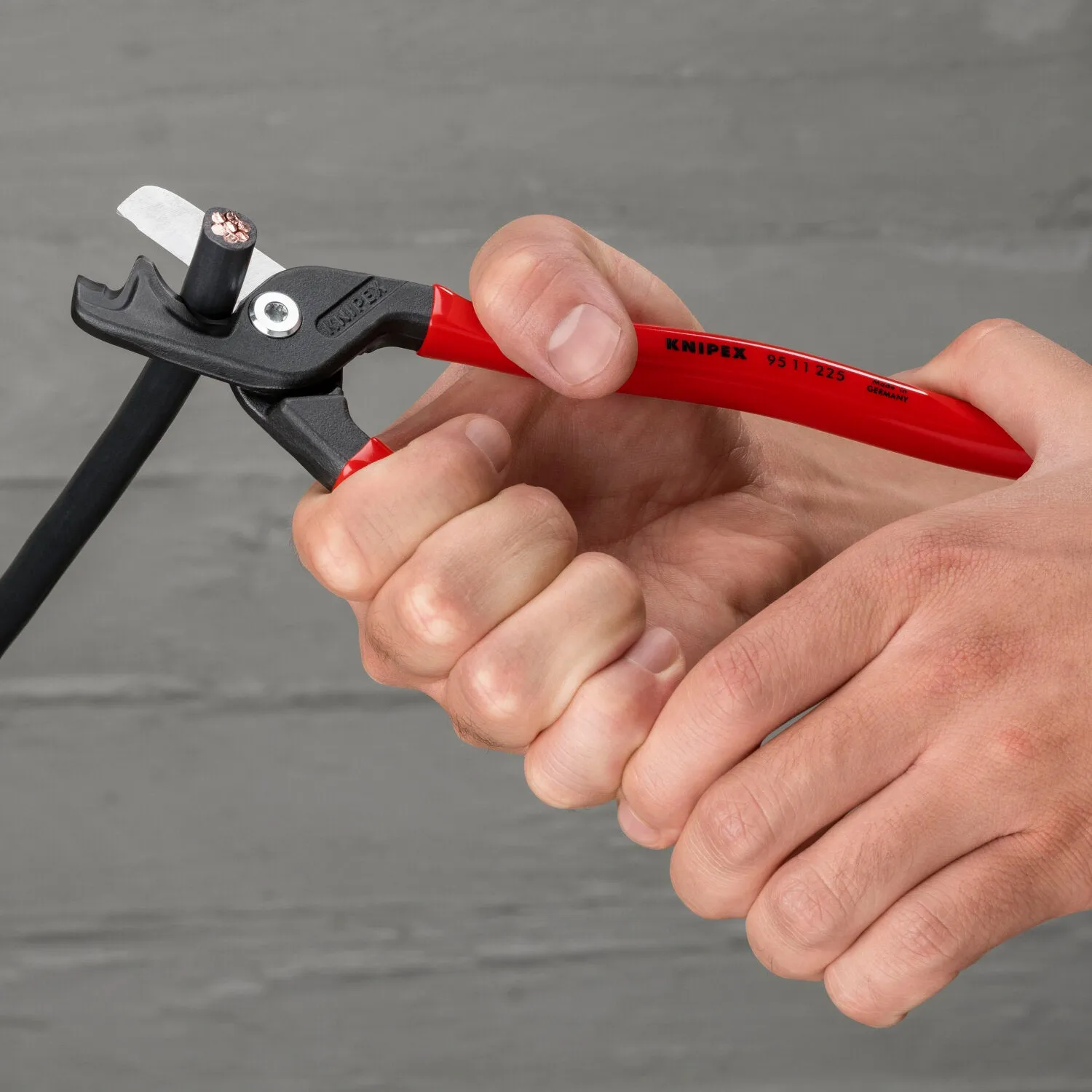

Easy one- or two-handed operation with minimal handle opening for large cable diameters
Slim head for better accessibility
Not suitable for steel-reinforced cables, e.g. ACSR
Adjustable, high-leverage bolted joint provides precise and smooth cutting
Pinch guard prevents operators' fingers being pinched
Laser-hardened cutting edges (approx. 56 HRC)
High-grade special tool steel; forged; oil-hardened
Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG
Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables
Easy one- or two-handed operation with minimal handle opening for large cable diameters
Slim head for better accessibility
Not suitable for steel-reinforced cables, e.g. ACSR
Adjustable, high-leverage bolted joint provides precise and smooth cutting
Pinch guard prevents operators' fingers being pinched
Laser-hardened cutting edges (approx. 56 HRC)
High-grade special tool steel; forged; oil-hardened
